ALLROAD SL

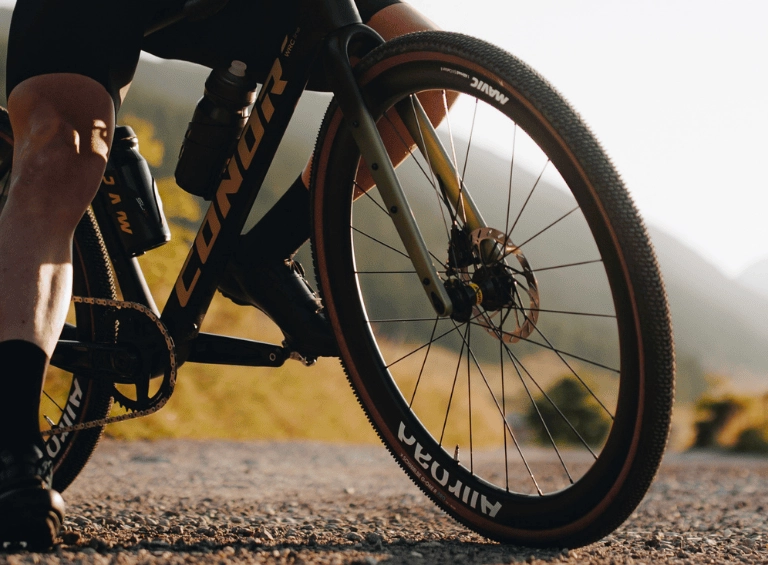

The Allroad SL wheel is the pinnacle of efficiency, ride quality and speed on the roughest roads, the loosest gravel tracks and all paths that lead to them. Thanks to its 25mm wide UST hookless rims, this wheel offers a smooth ride with a wide range of matching tubeless tires, from 30mm to 64mm.

Patented Aero spokes improve the ride quality and speed of the Allroad SL wheel, creating a dynamic, high-performance experience that's almost magical. Fore drilling makes the rim completely airtight, eliminating the need for a rim tape and saving 30g per wheel—the weight of an extra bar in your back pocket. That weight savings per revolution, not to mention the ID360 freewheel's fluidity, maximizes efficiency in the long haul. While particularly lightweight, the freewheel is also easy to maintain over time thanks to the automatic bearing preload (QRM Auto). UST Road Tubeless technology allows for reduced tire pressure, offering premium comfort and better control on the most technical surfaces, as well as reduced friction for increased efficiency and grip, plus protection against flats.

In addition to its exceptional efficiency, the Allroad SL wheel stands out for its lightness, durability and ease of use and maintenance. Using ISM4D rim technology, our engineers saved weight where it matters most, while guaranteeing an almost biblical level of durability. What's more, the Black Shield Rim finish, a combination of anodizing and paint, reinforces against impacts and scratches caused by everything that committed cycling off the paved roadways can dish out.

The Allroad SL wheel will bring your daydreams to life with its ideal combination of lateral rigidity and vertical compliance, creating a sublimely dynamic ride quality. Fore technology keeps the upper bridge of the rim solid, providing increased rigidity during powerful accelerations, while oversized axles and bearings enhance lateral rigidity for improved stability in challenging terrain and harsh conditions.

The Allroad SL wheel's ID360 Freewheel technology is compatible with 12mm axles and can be converted to quick release for optimal versatility.

More than just a smooth, fast choice for rough roads, the Allroad SL is a gravel cyclist’s dream come true. Indulge yourself every day with the dynamic, high-performance ride of this exceptional wheel.

Main features

Ride smoother and faster on rough roads, gravel and dirt

25mm wide hookless UST rims for a smooth ride with a wide range of tubeless tires from 30mm-64mm
UST Road Tubeless lets you run lower tire pressure for comfort and control on rough roads
No tubes means less friction, better efficiency and grip, and pinch-flat protection
Patented aero spokes imrpves ride quality and speed

Superlight, durable and easy to use and maintain

ISM4D rim saves weight where it matters while protecting durability
Black Shield rim finish offers 2 times stronger protection against rock impacts and scratches
Fore drilling makes the rim fully airtight without the need for a rim tape - 30g saved per wheel
ID360 freewheel is low and easy maintenance and automatic bearing preload (QRM Auto) requires no adjustment and guarantees long-term durability

Laterally stiff and vertically compliant for a dynamic ride quality

Fore technology keeps the rim upper bridge solid to make the rim stiffer
Oversize axles and bearings offers greater lateral stiffness
ID360 freewheel technology is 12mm compatible, convertible to quick release

Specifications

  • Weight Pair : 1655 g
  • Weight Front : 773 g
  • Weight Rear : 882 g
  • Material: Maxtal
  • Height: 22 mm
  • Joint: SUP welding technology
  • Internal width: 25 mm
  • Drilling : Fore tapeless tubeless technology (front/rear 24 holes)
  • Braking: disc
  • Profile: hookless
  • ETRTO size: 622x25TSS
  • Tire: UST Tubeless Ready
  • Material: steel
  • Shape: straight, aero, constricted, antirot (front and rear)
  • Nipples: brass, black
  • Screw: M7
  • Lacing: crossed 2 (front and rear)
  • Body material: aluminium
  • Body design: INFINITY
  • Disc standard: Center Lock® only
  • Axle material: aluminum
  • Axle size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (not included)
  • Freewheel technology: Instant Drive 360
  • Freewheel: Shimano HG road
  • Bearing technology: QRM automatic setting - sealed cartridge
  • Freewheel body: convertible SRAM XD road (kit V2580101 sold separately)
  • Freewheel body: convertible SHIMANO HG light road (kit V3850101 sold separately)
  • Freewheel body: convertible SHIMANO MS (kit V3990101 sold separately)
  • Freewheel body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
  • Freewheel body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
  • Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
  • Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
  • Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately) and by changing the axle (V2373401 also sold separately)
  • User guide
  • UST valve not mounted on wheel
  • 2 Multifonction adjustment wrench with the rear wheel
  • Minimum tyre size: width 30mm - pressure max. 4.05Bar/59PSI
  • Maximum tyre size: width 64mm - pressure max. 2.45Bar/36PSI
  • ASTM category 2 : road and offroad with jumps less than 15cm
  • Maximum weight supported by the wheels: must not exceed 135 kg (bike weight included)

Key technology

LightnessMaxtal aluminum alloy
Light and strong. Exclusive to Mavic, this specific aluminum alloy offers a higher strength to weight ratio than conventional 6106 alloy.
LightnessISM 4D light rim technology
Inter Spoke Milling 4 Dimensions is an exclusive Mavic patented concept. The ISM 4D significantly reduces weight and inertia without compromising durability. Quicker accelerations, better handling and more resistance ; the right mix to make the most of any ride. The smooth profile also helps reducing aerodynamic drag.

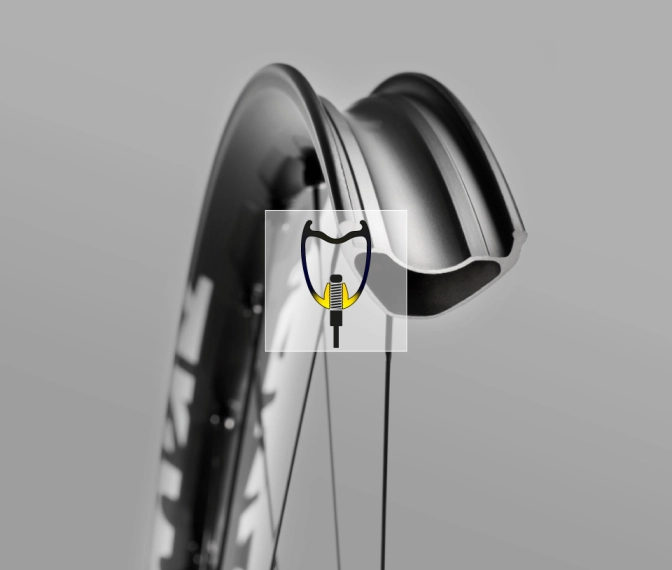

Efficiency RigidityFore tapeless tubeless technology
Stiffer and stronger. Instead of being drilled, the lower rim bridge is pushed up on the inside, then threaded to enable the spoke nipples to be directly screwed in it, leaving the upper rim bridge intact.

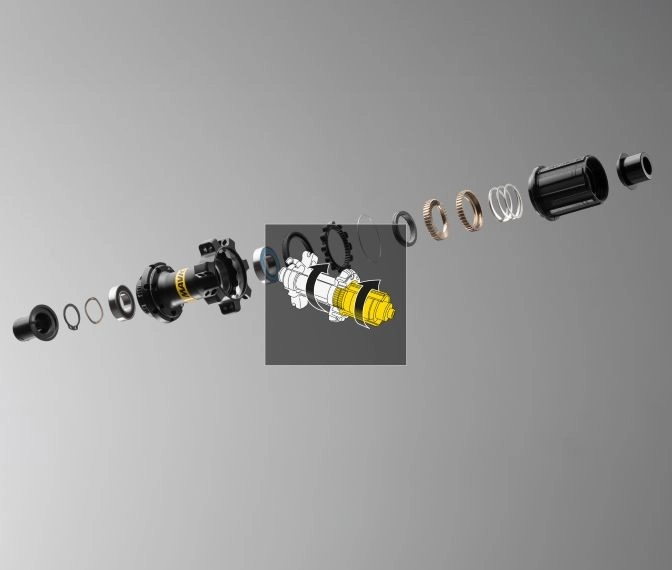

Efficiency RigidityInstant Drive 360 freewheel technology
The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

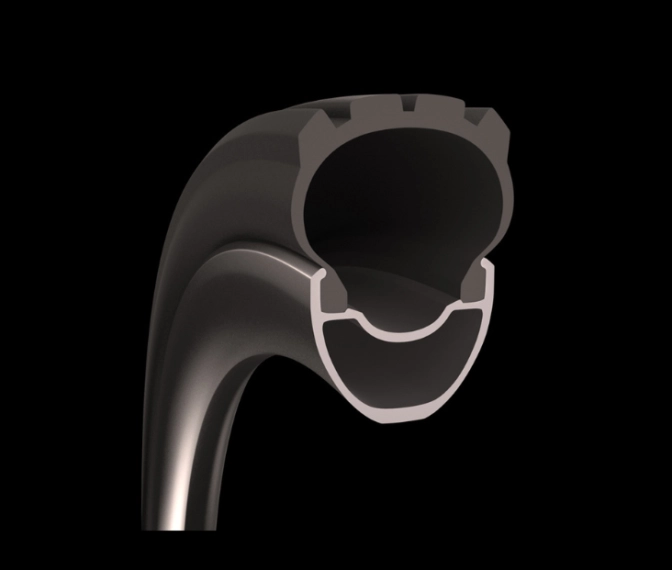

Efficiency RigidityUST tubeless technology
Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.
Safety ReliabilitySUP welding technology
Soudé Usiné Process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.
Safety ReliabilityBlack Shield treatment (protects your rim against impacts and scratches)
This treatment doubles the rim's lifespan against stone impacts and scratches. Super strong double coated treatment with a matt finish.

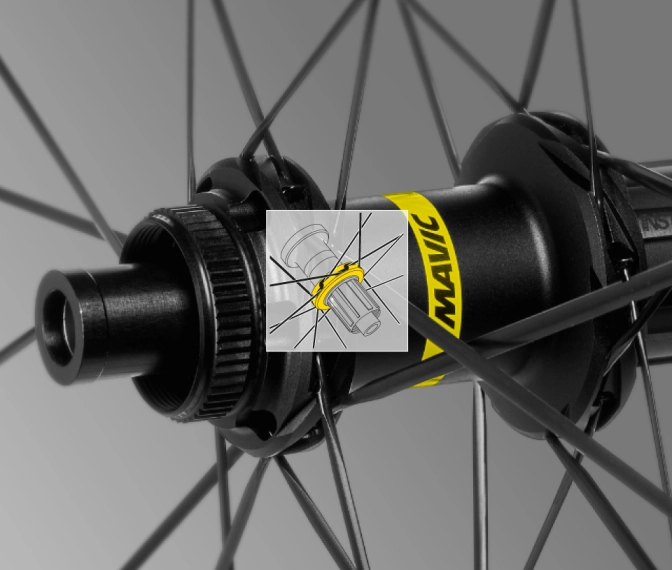

Safety ReliabilityInfinity hub design
Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.
Safety ReliabilityQRM Auto bearing preload technology
Qualité de Roulements Mavic Auto. Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

User guides and documents

General User GuideDownload PDF
