Road hubs

Hubs for road bikes

A road bike hub is the centre of the wheel: it holds the spokes, turns around the axle fixed to the bike and, on the rear wheel, carries the freehub body. Mavic road bike hubs, the MR801 range, run on sealed cartridge bearings, and every MR801 rear hub takes the Instant Drive 360 freehub.


RecommendedSort By

MR801 hubs for road bikes: which model to choose?

The MR801 road hub you need depends first on your brakes: the MR801 Classic RB for rim brakes, the MR801 Classic Disc and Infinity SP Disc for Center Lock discs. The drilling of the hub must match the number of holes in the rim: a 28-hole rim laces onto an MR801 Classic RB or Classic Disc.

The MR801 Classic RB and Classic Disc are built around an oversized 17 mm axle, designed for high lateral stiffness.

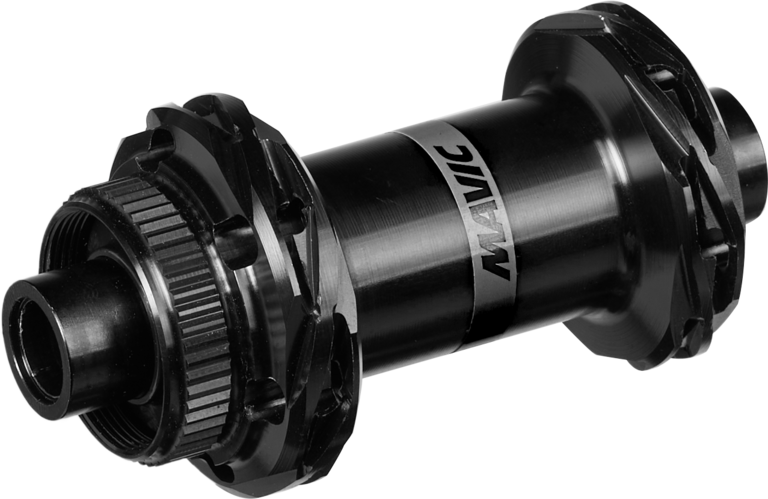

The MR801 Infinity SP Disc takes straight-pull spokes of a single length for the front and rear wheels, which simplifies building a 24-hole custom pair. If you would rather not lace a wheel yourself, complete aluminium road wheels with disc or rim brakes do the same job out of the box.

Brakes, axles, drilling and the freehub body supplied set the three MR801 hubs for road bikes apart for a custom wheel build.

ModelBrakesAxles front / rear (mm)Drilling front / rear (holes)Freehub body suppliedWeight front / rear (g)
MR801 Classic RBRim brake9x100 / 9x130, quick release20, 24, 28 / 24, 28, 32Shimano HG road57 / 248
MR801 Classic DiscCenter Lock disc12x100 / 12x14224, 28, 32 / 24, 28, 32Shimano HG road, SRAM XDR, Shimano Micro Spline97 / 245
MR801 Infinity SP DiscCenter Lock disc12x100 / 12x14224 / 24Shimano HG road, SRAM XDR125 / 260



Rim or Center Lock disc brakes: road hub axles

In the MR801 range, the brakes set the axle standard of your road bike wheel hub: quick release for the rim-brake Classic RB, thru axles for the two Center Lock disc models.

Rim-brake road hub: 9x100 and 9x130 quick release

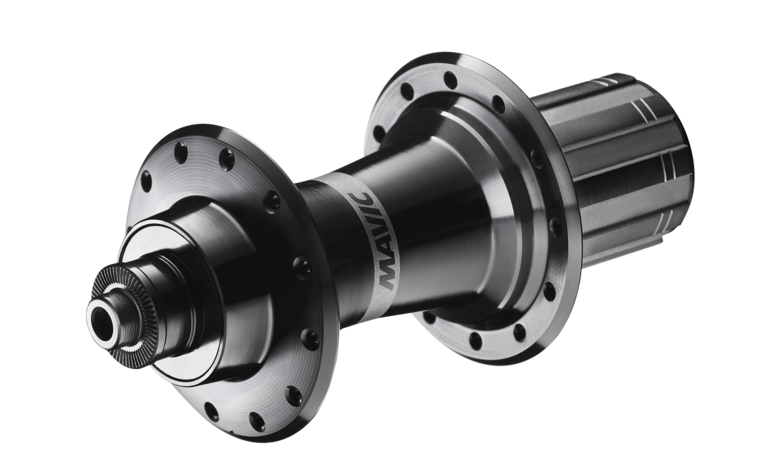

The rim-brake MR801 Classic RB fits by quick release only, with a 9x100 mm front axle and a 9x130 mm rear axle. The MR801 Classic RB front hub weighs 57 g, the lightest in the MR801 range. On a bike with rim-brake callipers, a quick release skewer frees the wheel at the roadside so you can fix a puncture.

Center Lock road hub: 12x100 and 12x142 axles

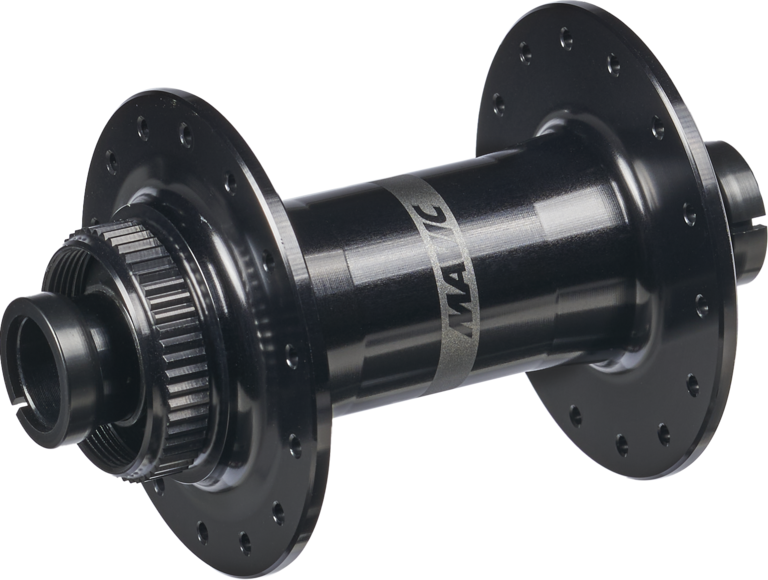

The Center Lock disc hubs MR801 Classic Disc and Infinity SP Disc fit 12x100 mm thru axles at the front and 12x142 mm at the rear. A Center Lock disc is held by a lockring on splines on the hub, a different interface from a disc fixed with six bolts. For a quick release fork or a 135 mm frame, thru axle adapters sold separately convert the front hub to 9x100 and the rear hub to 9x135 or 12x135.

Instant Drive 360 freehub: engagement and cassettes

The Instant Drive 360 freehub is fitted to all three MR801 hubs, with a 40-tooth ratchet and 9° of engagement on the MR801 Classic RB and Classic Disc. With 40 engagement points, one every 9°, the Instant Drive 360 of the MR801 Classic RB and Classic Disc drives the wheel again after 9° of rotation at most: you lose very little pedal stroke when you sprint out of a corner. The MR801 Infinity SP Disc uses a dual ratchet with quick engagement. The patented Instant Drive 360 mechanism, presented among the Mavic wheel innovations, has proven its reliability on more than 100,000 wheels produced.

MR801 rear hubs take Shimano HG road, SRAM XDR, Shimano Micro Spline and Campagnolo cassettes, with the freehub body supplied or a kit sold separately.

QRM Auto bearings and seals: a road hub built to last

The MR801 road hub runs on sealed cartridge bearings with automatic QRM preload, on the Classic RB, Classic Disc and Infinity SP Disc. On the MR801 Classic RB and Classic Disc, a labyrinth seal also protects the freehub from outside contamination, such as the spray of a long ride in the rain.

Mavic hubs are put through a torsion bench that applies high forces over 100,000 cycles, to check their resistance over time. The Mavic laboratory tests on wheels also include 24 hours of cartridge bearing rotation under a continuous jet of water.

FAQ

A bearing is one component of a road bike hub: set between the axle and the shell, it lets the hub shell and its flanges turn around the fixed axle. The hub brings together an axle, a shell drilled for the spokes and, at the rear, the freehub; the bearings are only one part of it. A worn sealed cartridge bearing is replaced as a whole, whereas the play in a cup-and-cone bearing can be adjusted. The MR801 Classic RB, Classic Disc and Infinity SP Disc all run on sealed cartridge bearings with automatic QRM preload. Hub bearings are wear parts, to be replaced from time to time, for example by your dealer.

Replacing a road bike wheel hub means unlacing the spokes and rebuilding the wheel, with a hub drilled for the same number of holes as the rim. Lacing a wheel calls for a good command of spoke tension. Spoke lengths are worked out from the diameter and position of the new hub's flanges, given on the MR801 product pages. The MR801 Infinity SP Disc uses a single spoke length for both wheels, which simplifies the build and later maintenance. For a Mavic wheel, a Mavic retailer makes an initial diagnosis and can send it to the nearest Mavic Service Center; documentation is on the Mavic technical manuals site.

The axle of a road hub, sometimes called the spindle, passes through the hub and fixes it to the frame or fork, while the hub shell turns around it on its bearings. The axle length follows the dropout spacing of the frame or fork: measure it before buying a hub. The usual standard for a rim-brake road bike with quick release is 100 mm at the front and 130 mm at the rear. The usual standard for a disc-brake road bike with a 12 mm thru axle is 100 mm at the front and 142 mm at the rear. The MR801 Classic RB follows the 100 / 130 mm quick release standard, the MR801 Classic Disc and Infinity SP Disc the 12x100 / 12x142 thru axle standard.

A rear road hub carries the freehub body and is wider than the front hub: 130 or 142 mm against 100 mm in the MR801 range. On the MR801 Classic Disc and Infinity SP Disc, the front hub takes the Center Lock disc, and the rear hub takes both the Center Lock disc and the freehub body that carries the cassette. The MR801 Classic Disc rear hub weighs 245 g, against 97 g for the MR801 Classic Disc front hub. All three MR801 hubs are sold separately as front and rear versions, so you can replace one hub without buying the pair.

Mavic road hubs are maintained by checking for play regularly, with the wheel clamped in the frame, and by rinsing with a low-pressure jet that protects the bearings. Move the wheel sideways: a small clack means too much play in the hub, which your dealer should look at, for example to replace the bearings. Do not use a pressure washer at close range, then dry the hubs and spokes with a dry cloth. Spin the wheel by hand to listen for any noise or roughness. The 2-year Mavic warranty covers hubs against defects in material or workmanship, excluding wear parts (pawls, seals, bearings and freewheel bodies) and unsuitable assembly, as set out on the Mavic warranty page.
