Freehub bodies

Freehub bodies

A freehub body, or cassette body, is the splined part of the rear hub that carries the cassette and drives the wheel when you pedal. Mavic freehub bodies follow the cassette standard on your bike: Shimano HG, Micro Spline, SRAM XD, XDR or Campagnolo, each available for the Mavic Instant Drive 360 hub.


RecommendedSort By

Which freehub body for your cassette?

The right freehub body depends on the standard of the cassette on your bike: Shimano HG or Micro Spline, SRAM XD or XDR, Campagnolo or N3W. These standards do not cross over, with one exception: a SRAM XD cassette fits an XDR body with a spacer. Moving from Shimano HG to SRAM XDR on the same wheel therefore means a new body.

The cassette standard, the number of speeds and the Mavic hub system are what set the four Mavic Freewheel Body models apart.

ModelCassette standardSpeedsMavic hub system
Freewheel Body HGShimano HG (Hyperglide)7 to 12; 9 for MTBInstant Drive 360, B9, ITS-4

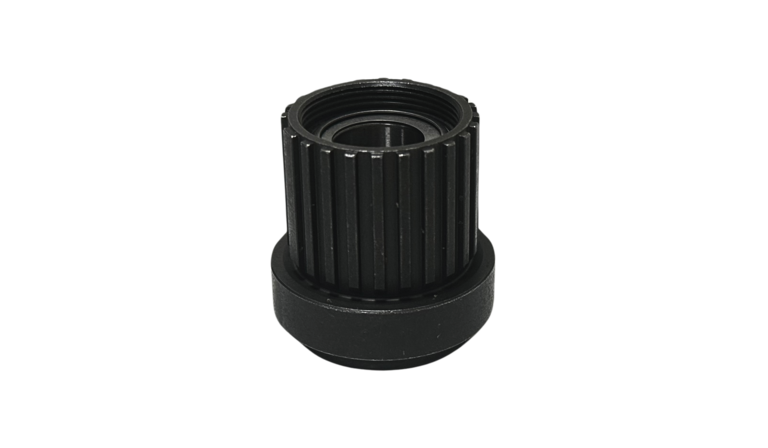

Freewheel Body MSShimano Micro Spline12Instant Drive 360

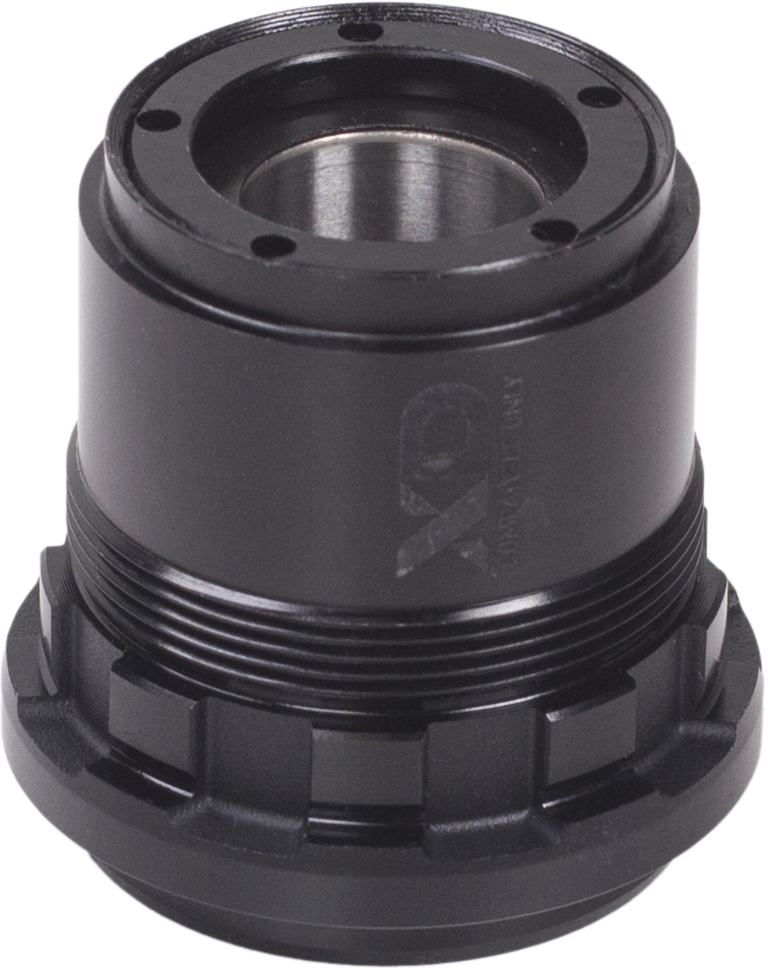

Freewheel Body XD/XDRSRAM XD and XDR11 and 12Instant Drive 360, ITS-4, TS2

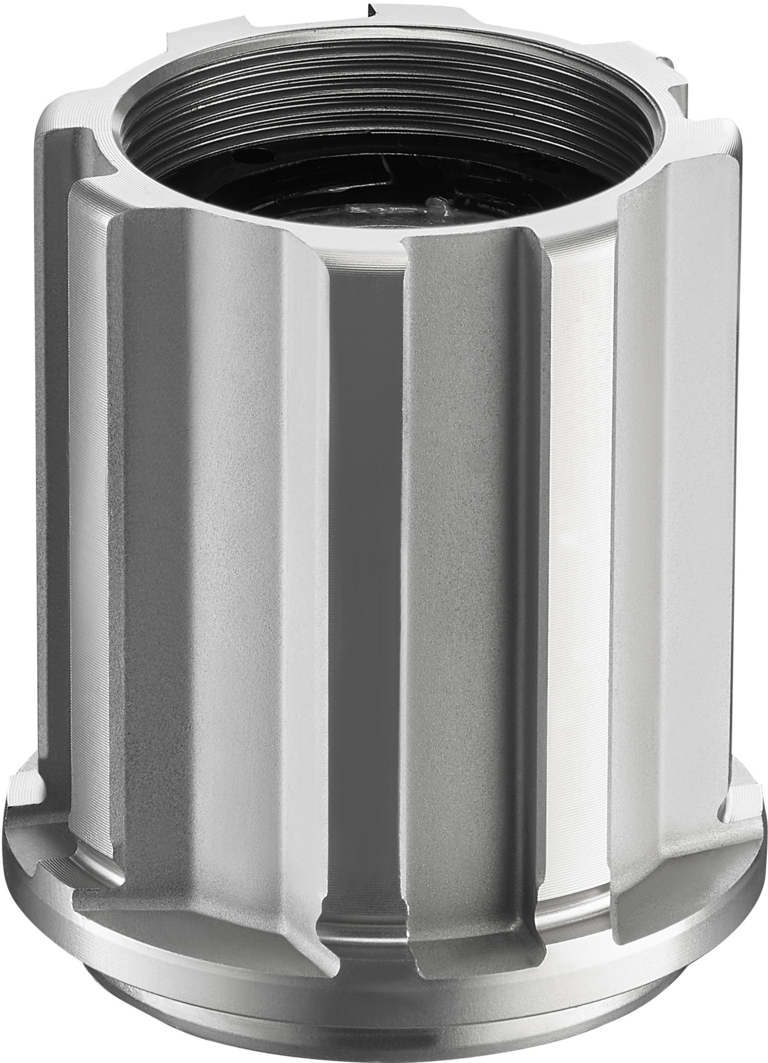

Freewheel Body CampaCampagnolo and N3W9 to 12; 13 with N3WInstant Drive 360, B9



Shimano freehub body: HG or Micro Spline?

A Shimano freehub body comes in two standards at Mavic: the Freewheel Body HG for Shimano HG cassettes from 7 to 12 speeds, and the Freewheel Body MS for 12-speed Shimano Micro Spline cassettes.

For the road, the HG-R ID360 CERA version of the Freewheel Body HG runs on ceramic bearings. A winter bike still on 7 speeds takes the aluminium ID360 7S Alu kit, while a 9-speed Shimano mountain bike uses the HG9 AlMTB ID360 or HG9 StMTB ID360.

The Freewheel Body MS fits 12-speed Shimano mountain bikes, as the MS StMTB ID360 or the aluminium MS Alu ID360: the body to fit before a season of steep, rooty climbs on a wide-range cassette.

SRAM XD, XDR, Campagnolo and N3W cassette bodies

SRAM XD cassettes go on an XD body for mountain biking, SRAM XDR on an XDR body for road and gravel, Campagnolo on a Campagnolo body, or N3W for 13 speeds.

SRAM XD for MTB, XDR for road and gravel

The SRAM XDR body is 1.85 mm longer than the SRAM XD body: XD is used on mountain bike wheels, XDR on road and gravel wheels. An XD cassette will fit an XDR body with a 1.85 mm spacer behind it.

On a gravel bike running a SRAM XDR cassette, the Instant Drive 360 hubs of the Mavic gravel wheels take the XDR ID360 CERA, with ceramic bearings.

Campagnolo 9 to 12 speeds and N3W 13 speeds

The Campagnolo Freewheel Body Campa takes Campagnolo drivetrains from 9 to 12 speeds in ED11, and 13-speed Campagnolo drivetrains in N3W. With 13 speeds, an Instant Drive 360 wheel takes the aluminium N3W ID360; from 9 to 12 speeds, it takes the ED11 ID360.

Instant Drive 360, B9 or ITS-4: which Freewheel Body?

A Mavic Instant Drive 360 hub takes, in its road or MTB version, a Shimano HG, Micro Spline, SRAM XD, SRAM XDR, Campagnolo or N3W body, each sold as a Freewheel Body.

Mavic hubs with the B9 interface take the HG11 B9 and ED11 B9 kits. A Crossmax or Deemax wheel from 2012 onwards, with a TS2 or ITS-4 hub, switches to SRAM XD with the XD TS2 / ITS-4. If you bought a hub on its own, among the Mavic road hubs or the Mavic MTB hubs for custom builds, the version name gives the interface to order: ID360, B9, ITS-4 or TS2.

The HG-R ID360 CERA, HGLHT ID360 CERA and XDR ID360 CERA run on ceramic bearings, designed to reduce friction, and the ID360 HG11 Steel kit uses a steel body for extra durability.

Changing the cassette body to switch cassette standard

Swapping the cassette body lets you fit a cassette of another standard on the same wheel, for example moving from Shimano HG to SRAM XDR. You take the wheel out and remove the cassette with a cassette lockring tool and a chain whip; the tools for the body itself depend on the hub.

On an Instant Drive 360 hub, the dual ratchet sits inside the hub shell: the body slides back onto the axle once the ratchets are lined up, after cleaning and greasing the inside of the hub. The Instant Drive 360 ratchets pick up your effort with no lag, so you feel the drive as soon as you get back on the pedals out of a corner. The 40-tooth ratchet kit, listed with the Mavic wheel spare parts such as bearings and tools, changes the engagement.

A freehub body is the splined part of the rear hub that carries the cassette and, with the hub shell, forms the freewheel mechanism, using pawls or ratchets. When you pedal, the mechanism engages and your effort passes from the cassette to the wheel; when you stop pedalling, the wheel keeps turning without driving the pedals. On a Mavic Instant Drive 360 hub, the dual ratchet sits inside the hub, and the body slides back onto the axle once the ratchets are lined up. A screw-on freewheel, which combines sprockets and mechanism in one block that threads onto the hub, is a different system.

A worn freehub slips when you pedal, skips teeth under load or keeps making unusual noises after cleaning and greasing. Slipping can come from worn pawls or ratchets that no longer hold the drive, and bearings that feel rough also point to wear: the body then needs replacing. The wheel maintenance page on mavic.com recommends opening the freewheel system once a month to check its condition, a quick job on current Mavic wheels with Instant Drive 360. For an older wheel without Instant Drive 360, ask your dealer or contact Mavic directly.

A cassette body has no set lifespan in miles: it depends on how much you ride, in what conditions, and how well you maintain it. The Mavic warranty policy lists freewheel bodies among wear parts, alongside pawls, bearings and seals, so normal wear is not covered by the warranty; the warranty page on mavic.com gives the full terms. The ID360 HG11 Steel kit uses a steel body for extra durability, and the HG-R ID360 CERA and HGLHT ID360 CERA run on ceramic bearings designed to reduce friction and improve durability.

A Shimano HG 11-speed road freehub takes 12-speed Shimano road cassettes: the Mavic Freewheel Body HG covers Shimano HG from 7 to 12 speeds, apart from the HG9 and 7S versions. The HG11 ID360, HG11 ID360 LGHT, ID360 HG11 Steel and HG11 B9 carry the HG11 name yet take Shimano HG up to 12 speeds. A Mavic road wheel with an HG11 body therefore keeps it when you move from an 11-speed to a 12-speed Shimano groupset. On a mountain bike, 12-speed Shimano drivetrains use a Micro Spline body, such as the Freewheel Body MS.

The cassette body on a Mavic wheel depends on the standard of the cassette fitted and on the hub: Instant Drive 360, B9, ITS-4 or TS2 for the Freewheel Body range. The cassette standard can be found from its reference or in the wheel documentation: Shimano HG, Micro Spline, SRAM XD, XDR, Campagnolo or N3W. The hub interface then tells you which version to order, since each Freewheel Body version carries the name of its interface, such as ID360 for Instant Drive 360 or B9. A drivetrain with more than eight sprockets uses a cassette on a body, not a screw-on freewheel.
