Carbon road rims

Carbon road bike rims

Carbon rims for road bike are deep-section road rims sold on their own, to build a fast wheel for flat and rolling roads. The Mavic carbon road bike rims C-2132, C-2142 and C-2345 Disc, from 32 to 45 mm deep, are UST Tubeless Ready carbon disc rims. The CXP Elite aluminium rim suits bikes with rim brakes.


RecommendedSort By

These product categories might interest you

Which road rim: aero carbon rim, lightweight or alloy?

A Mavic road rim, carbon rim or alloy, is chosen first by its depth: 32 mm for the C-2132 Disc, the lightest, and 42 and 45 mm for the C-2142 and C-2345 Disc.

C-2132 Disc: a 32 mm lightweight carbon rim for climbing

The 32 mm C-2132 Disc carbon rim weighs 392 g, against 430 g for the C-2345 Disc and 444 g for the C-2142 Disc. Built into a light pair, the C-2132 Disc makes it easier to get back up to speed out of each hairpin on a long, steady climb.

Mid-profile rims: C-2142 and C-2345 Disc at 42 and 45 mm

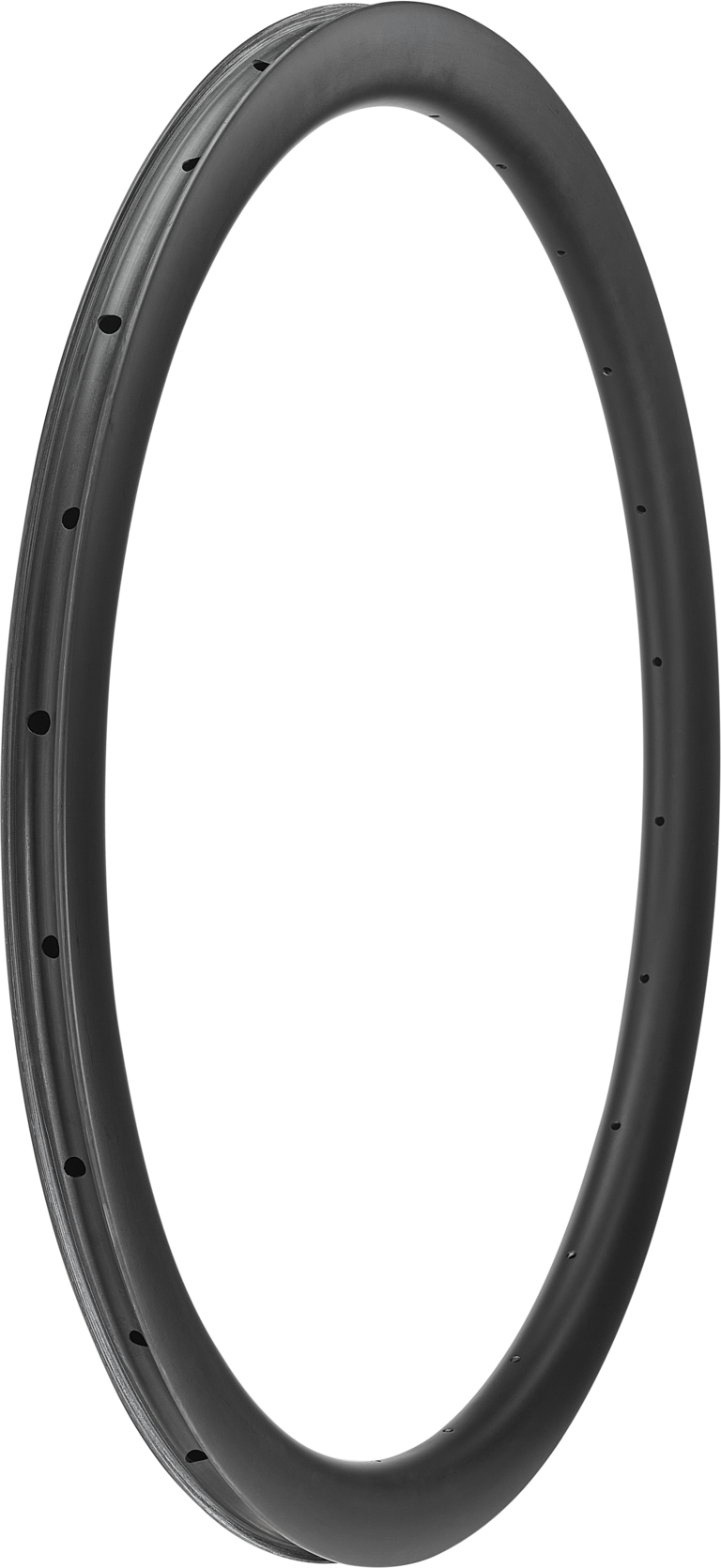

The mid-profile C-2142 Disc, 42 mm deep, and C-2345 Disc, 45 mm deep, carbon rims suit rolling routes and sustained speeds on the flat. The C-2142 Disc, a very versatile rim, is the entry point to Mavic carbon for any road bike. The C-2345 Disc, with a 23 mm internal width, uses Adaptive Layup: the fibres are placed according to stress, saving up to 70 g per rim, for a livelier wheel on the climbs.

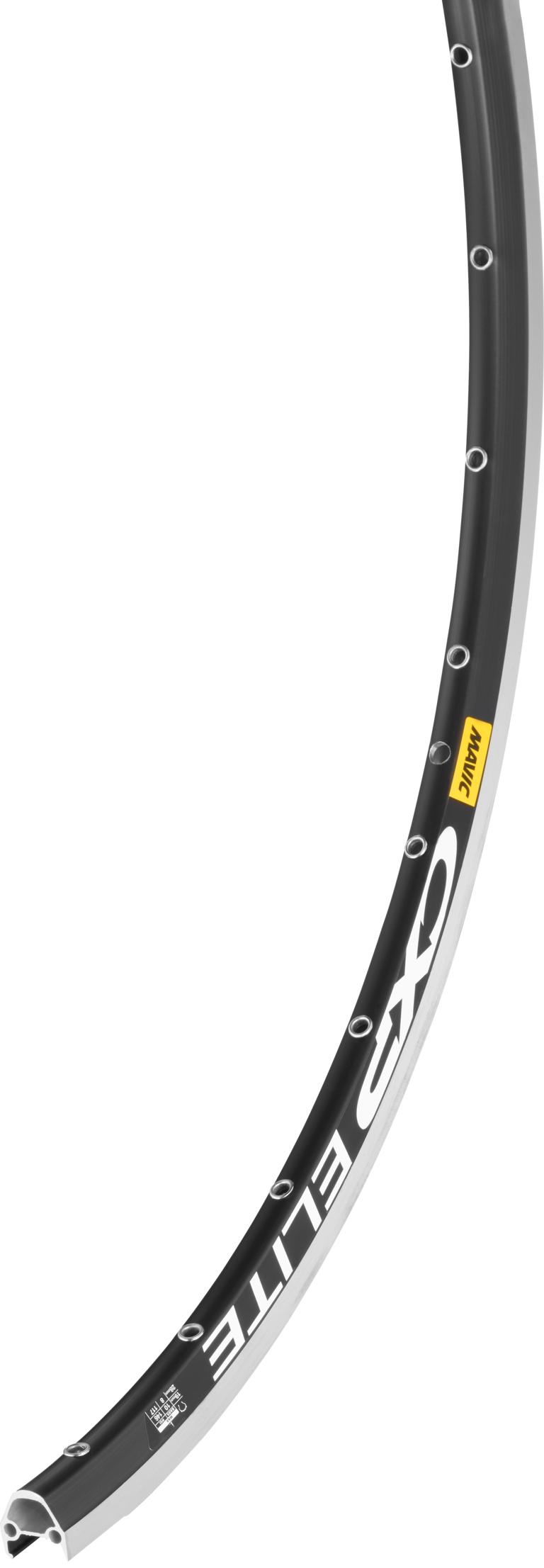

CXP Elite: a 21 mm aluminium rim for rim brakes

The 21 mm CXP Elite aluminium rim takes an inner tube on rim-brake bikes, with tyres from 19 to 28 mm. The CXP Elite is a natural replacement for a rim whose braking surface has worn too deep. Other alloy models feature among the Mavic road rims such as the Open Pro UST, and check your road brake pads for wear when you change the rim.

The depth, internal width, weight, brake type and drilling of the four Mavic rims tell you which one suits your routes, your brakes and the hub of your future wheel.

RimMaterialDepth (mm)Internal width (mm)Weight (g)BrakesDrilling (holes)Spoke bed diameter (mm)
C-2132 DiscCarbon3221392Disc24 or 28576, including washers
C-2142 DiscCarbon4221444Disc24559, including washers
C-2345 DiscCarbon4523430Disc24 or 28549, including washers
CXP EliteAluminium2115510Rim brake28 or 32596, without washers



Aero carbon rim: depth and crosswinds

An aero carbon rim reduces drag most when the wind comes from the side, and the deeper its profile, the more it reacts to gusts of crosswind.

On an exposed ridge road, a shallow rim stays more stable in a crosswind than a deep one. The shape of the rim profile, not only its depth, also affects drag.

The C-2142 Disc and C-2345 Disc, at 42 and 45 mm, offer a mid-profile: on a fast descent caught by a gust, the steering stays calmer than with a deeper section, which takes more side force.

Building a road wheel: 24 to 32-hole drilling

Building a road wheel starts from the rim drilling: 24 holes for the C-2142 Disc, 24 or 28 for the C-2132 and C-2345 Disc, 28 or 32 for the CXP Elite.

Your road bike hub must have the same number of holes as the rim: if you keep your 24-hole disc hub, choose a C-2132, C-2142 or C-2345 Disc drilled for 24.

Authorised Mavic dealers and service centres, trained and equipped with specific tools, carry out Mavic wheel assembly to strict specifications; damage from incorrect assembly is excluded from the warranty. For a ready-to-ride pair with no lacing, look at the Mavic carbon road wheels instead.

UST tubeless set-up: tape and internal width

The C-2132, C-2142 and C-2345 Disc carbon rims set up tubeless UST with Mavic Tubeless Tape, which covers the spoke holes of their traditional drilling without eyelets. For the C-2132 and C-2142 Disc, the Mavic tape is 25 mm wide and sold separately; for the C-2345 Disc, choose it to match the rim width, among the tubeless accessories such as valves.

With the UST tubeless system, you gain traction, control and comfort while reducing inertia and flats, and you can run lower pressures on broken tarmac.

The internal width, 21 mm on the C-2132 and C-2142 Disc or 23 mm on the C-2345 Disc, sets, together with the tyre width, the maximum pressure allowed. Never exceed the maximum pressure marked on the rim or the tyre, taking the lower of the two.

Carbon rims combine a deep profile with low weight: the Mavic C-2132, C-2142 and C-2345 Disc, from 32 to 45 mm deep, weigh from 392 to 444 g. The CXP Elite aluminium rim, with a 21 mm profile, weighs 510 g. A deep carbon rim also reduces drag when the wind comes from the side, on the flat as on a long, exposed drag. Finally, the C-2132, C-2142 and C-2345 Disc carbon rims set up UST tubeless, with no inner tube, so you can run lower pressures.

A carbon disc rim does not wear from braking, since the pads work on the disc: its life depends mainly on the knocks it takes and on its condition, checked regularly. On a rim braked on its sidewalls, like the aluminium CXP Elite, the braking surface wears down over the miles and acts as a wear indicator, until the rim needs replacing. The C-2132, C-2142 and C-2345 Disc avoid that wear. After a crash or an impact, and regularly, inspect a carbon rim for cracks or deformation. Tubeless rim tape remains a wear part, to be replaced over time.

The Mavic C-2132, C-2142 and C-2345 Disc carbon road rims are made for disc brakes: they are not designed for rim brakes. On these rims, the pads brake on the disc fixed to the hub, not on the rim. For a road bike with rim brakes, the grid offers the CXP Elite aluminium rim. For Mavic carbon rims with a braking surface, the Carbon Brake Pads are specifically designed and listed on the road brake pads page of the site. Before ordering, check the brake type of your frame.

The spoke bed diameter of a Mavic carbon road bike rim, including washers, is 549 mm for the C-2345 Disc, 559 mm for the C-2142 Disc and 576 mm for the C-2132 Disc. The spoke bed diameter, measured where the spoke nipples sit in the rim, is the starting point for the ERD and then for the spoke length. Spoke calculators do not all use the same measuring convention: check the one your tool uses, or leave the spoke length to your wheel builder. The CXP Elite aluminium rim gives 596 mm, measured without washers, a figure that cannot be compared directly with those of the carbon rims.

Carbon bicycle rims from Mavic sold on their own carry a 2-year warranty against defects in material or workmanship, claimed with proof of purchase. The Mavic warranty runs from purchase at an authorised retailer, which you can find with the retailer search on the site. Damage from incorrect assembly or unsuitable parts is excluded from the warranty. Normal wear of wear parts, such as rim tape, UST valves and braking surfaces, is not covered. For the full list of exclusions, read the warranty policy on mavic.com before you build the wheel.
