Crossmax Ultimate, Mavic’s lightest carbon XC MTB wheel

Crossmax Ultimate, Mavic’s lightest carbon XC MTB wheel


The Crossmax Ultimate was born out of a request from cross-country World Cup riders: a XC mountain bike wheel that is lighter, accelerates faster and retains all its precision. The Crossmax Ultimate wheel set weighs 1,080 g: it is the lightest ever developed by Mavic.

To make the Crossmax Ultimate lighter, Mavic’s engineers focused on three components: the carbon spokes with titanium nuts save 100g, the UltraLightHubs save a further 100g, and the Adaptive Layup carbon rim weighs 50g less than that of the previous generation.

At the start of an XCO mountain bike race, the cross-country wheel responds from the very first pedal stroke: its ID360 Light freehub with 40-tooth pawls engages every 9°, whether coming out of a bend or at the foot of a bump.

Developed in collaboration with the KTM and Mondraker teams. Tested in the 2026 UCI Mountain Bike World Cup.

Mosaic 0

Responsiveness: 40-tooth freewheel

Mosaic 1

Instant responsiveness,
power without loss

Mosaic 2

Control: carbon rim and spokes



MY GEAR

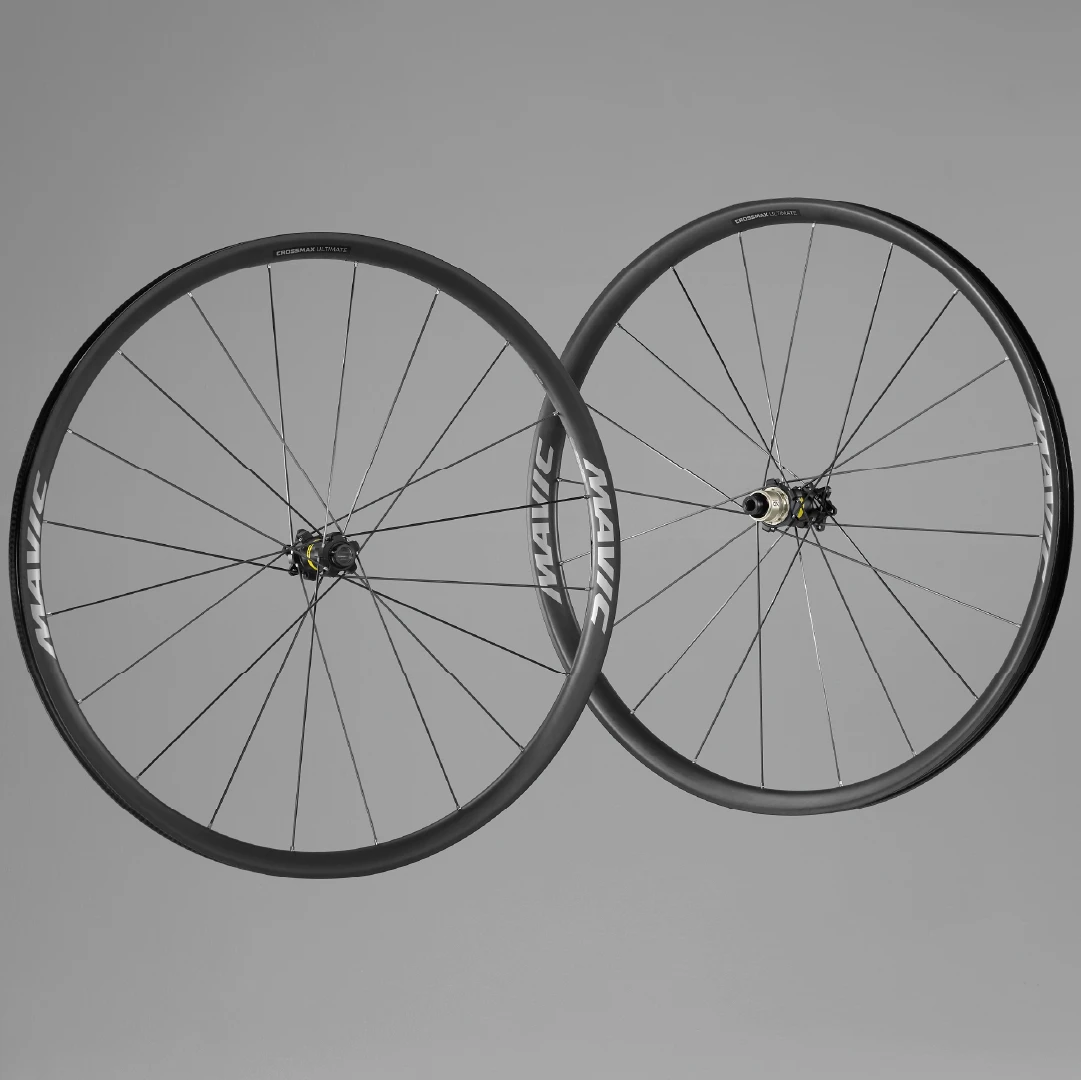

Carbon XC MTB wheelset: a pair weighing 1080g

Based on feedback from cross-country World Cup riders, Mavic’s engineers have redesigned every component of the Crossmax Ultimate, right down to the very last carbon fibre. In the 6-hole XD version, with the tubeless rim tape fitted, the pair weighs 1080g: no Mavic XC wheel has ever been this light.

Before finding the right carbon rim for cross-country, Mavic engineers carried out a series of numerical simulations, laboratory validations and field trials, testing several combinations of carbon fibres and resins. The result of this work is the Crossmax Ultimate’s Adaptive Layup carbon construction: a lighter rim that retains the stiffness, strength and reliability demanded at the highest level of XC.

The Crossmax Ultimate’s carbon spokes, fitted with titanium nuts, reduce the weight of this pair of carbon MTB wheels by 100g, and you can feel the difference with every acceleration, on every climb and on every line. At the rear, the hub weighs just 180g in the 6-hole XD version, and its Mavic Ceramic bearings reduce friction so that your effort is transferred directly to the wheel.

On an XCO course, the lightness of the Crossmax Ultimate makes itself felt where races are won: on steep climbs, during attacks and in the repeated bursts of speed lap after lap. Within the Crossmax cross-country MTB wheels range, the Crossmax Ultimate is the competition wheel set.

1080g per pair
(XD 6-hole, with tubeless rim tape fitted)

ID360 Light freewheel: engages every 9°

In cross-country racing, being able to accelerate instantly can make all the difference: the Crossmax Ultimate has been designed to respond the moment you press down on the pedals, whether to accelerate, follow the terrain or maintain your speed.

The Crossmax Ultimate is fitted with the ID360 Light freewheel, a system tried and tested by Mavic: its 40-tooth pawls engage every 9°, and your effort is transferred to the wheel from the very first push. At the foot of a technical climb, the wheel accelerates without delay, allowing you to tackle the ascent with greater confidence.

The Adaptive Layup carbon rim also makes the wheel more responsive: by optimising the orientation of the carbon fibres, Mavic’s engineers have made it 50g lighter than the previous generation, whilst maintaining the stiffness and durability required for competition. With less rotational inertia, you accelerate faster when the race heats up.

The Crossmax Ultimate’s high-strength carbon spokes are both stiff and lightweight: they transfer your power to the rim and keep the wheel on track through technical sections. Their titanium nipples make the wheel even lighter.

Mavic’s engineers have paid meticulous attention to every detail of the Crossmax Ultimate’s hubs: these ultra-light MTB hubs run on Mavic Ceramic bearings, which reduce friction and help you maintain your speed right up to the final lap. The ULH freehub body weighs 25 per cent less than the standard version.

From the start line to the finish, you’ll accelerate powerfully with the Crossmax Ultimate XC wheel, stay precise on technical sections, and every watt will be transferred to the wheel.

40 ratchet teeth. 9° engagement angle. Ceramic bearings.

Mosaic 0

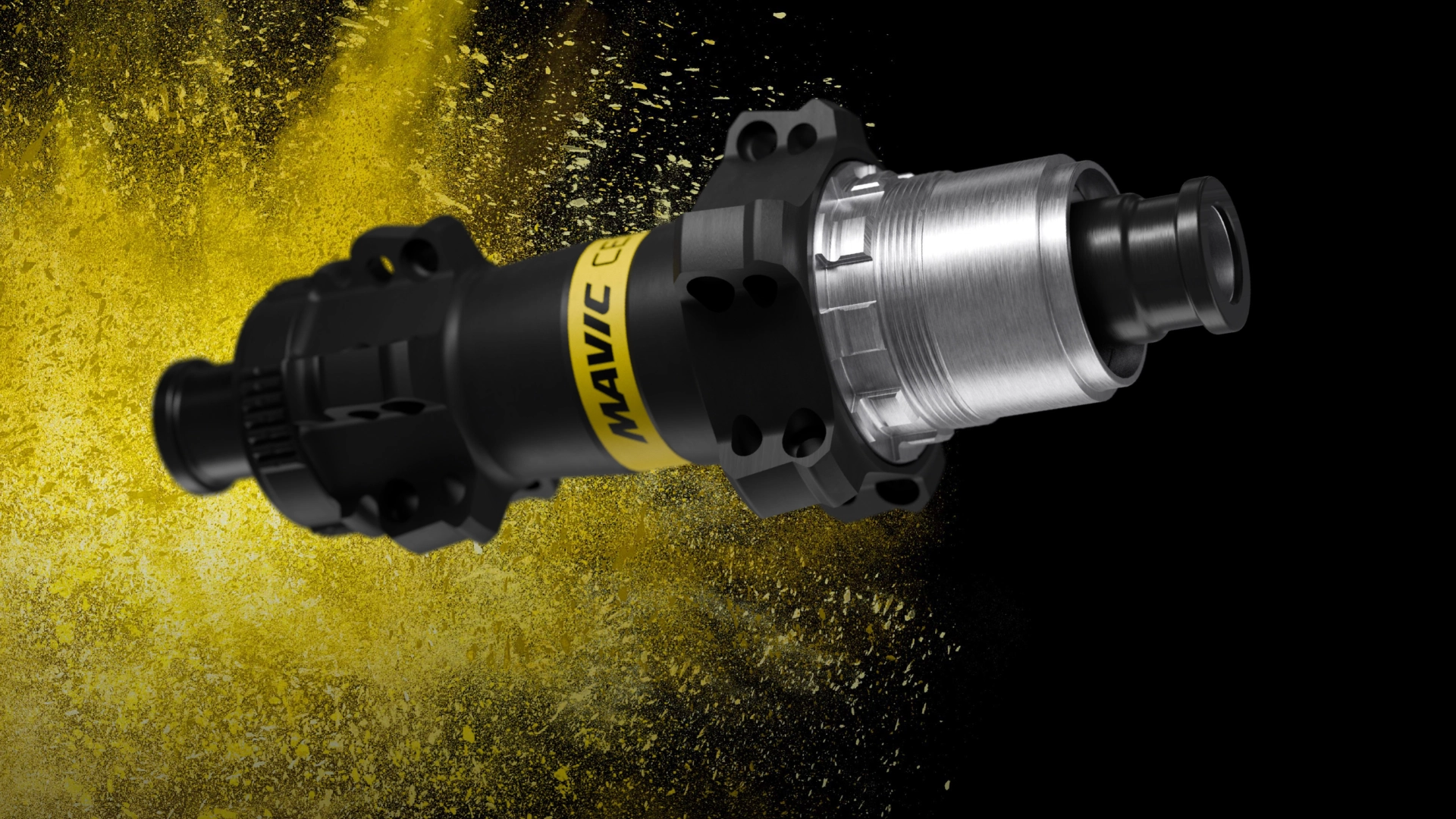

ID360 Light

Mosaic 1

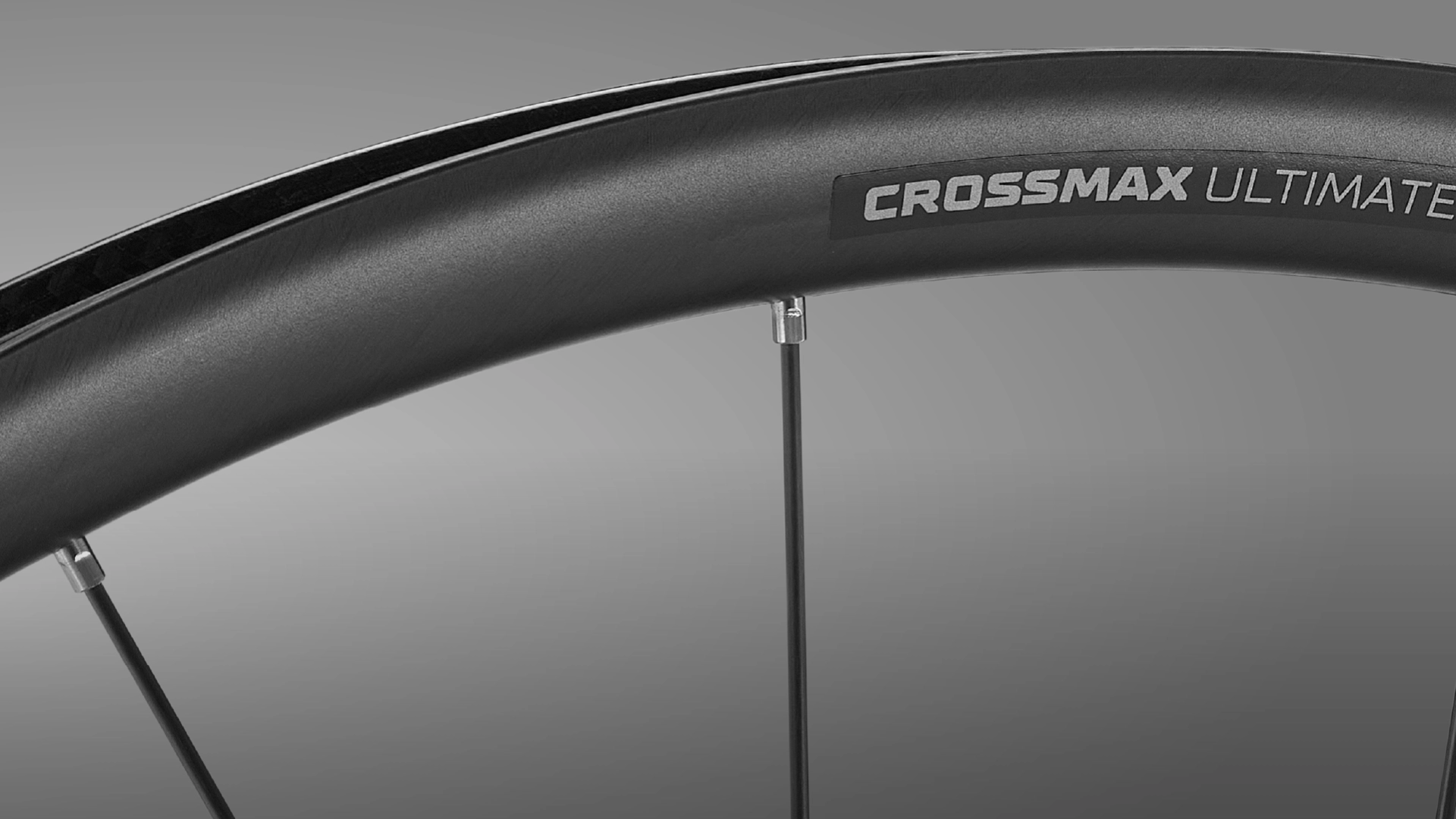

Adaptive Layup rim:
50g lighter than the previous generation

Mosaic 2

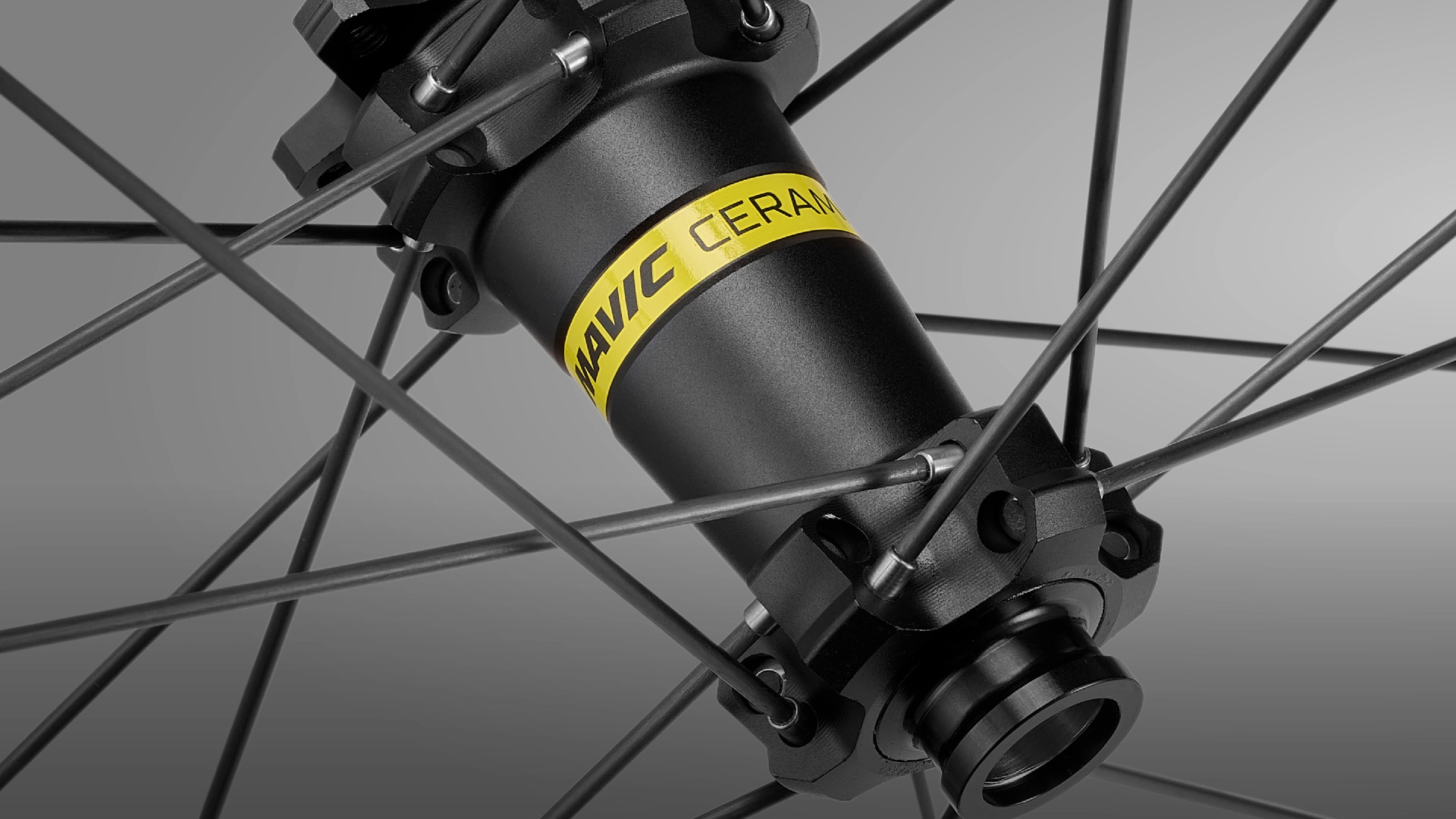

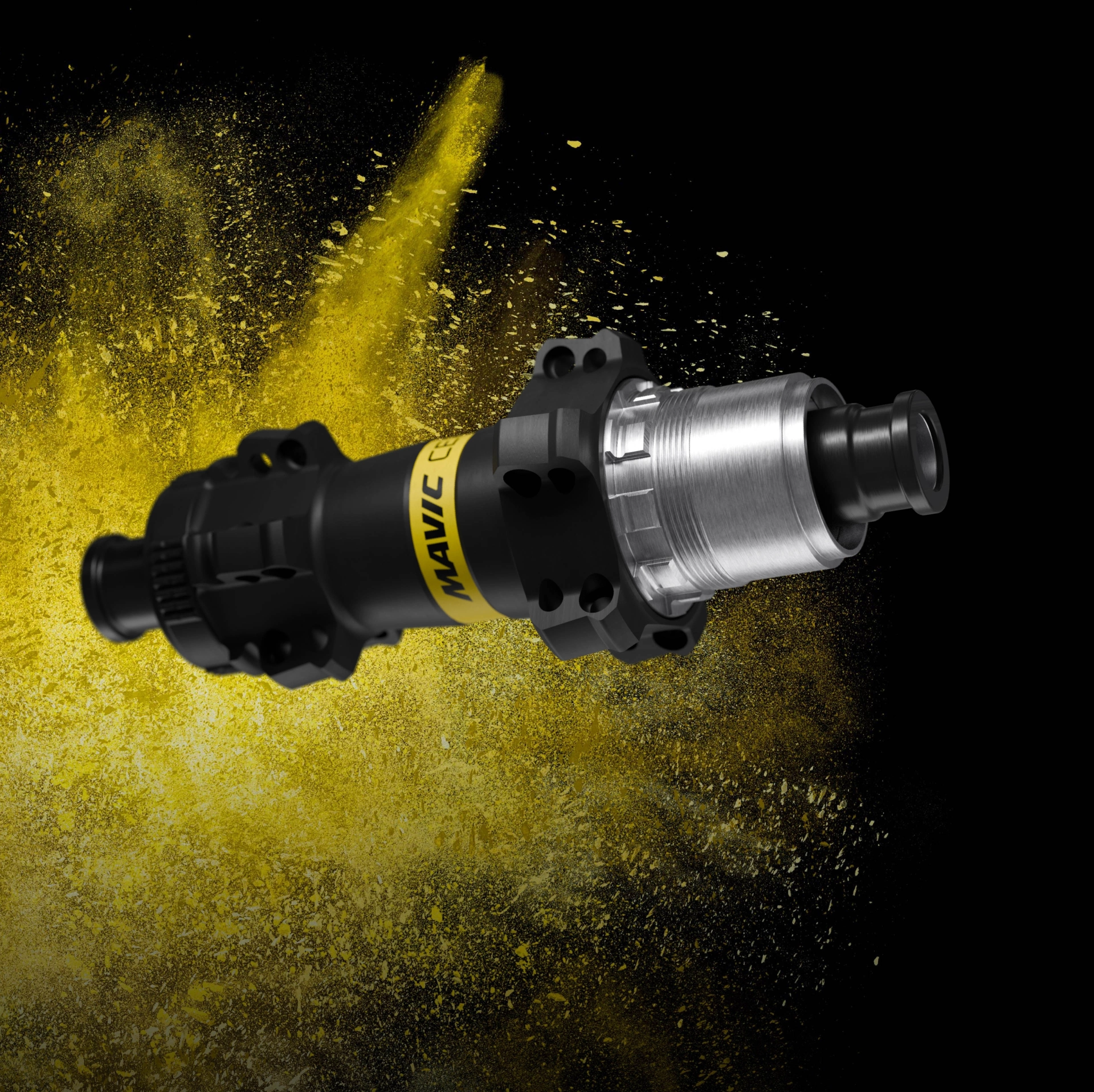

Ultra-light hub
only 180 g (rear XD 6-hole)

Control on descents: carbon rim and spokes

An XC mountain bike wheel is also judged on its downhill performance: cross-country routes demand precision, stability and the confidence to tackle every technical section, and the Crossmax Ultimate has been designed for these moments.

On the descents, the Crossmax Ultimate’s Adaptive Layup carbon rim combines low weight, high lateral stiffness and just the right amount of vertical compliance. The wheel responds to every pedal stroke and remains stable at high speeds: you can position it better through corners and descend with greater control.

The Crossmax Ultimate’s hookless rim has an internal width of 30mm and is compatible with 2.3–2.4-inch tyres, whether tubeless, tubeless-ready or with an inner tube. Supplied with its rim tape already fitted and its valves, the Crossmax Ultimate is ready for tubeless use from your very first ride.

Whether on scree, over roots or through a fast corner, you’ll find it easier to hold your line thanks to the Crossmax Ultimate’s carbon spokes, which enhance handling precision. The carbon spokes also filter out some of the vibrations from the terrain: you tire less easily and stay in control right until the end of the race.

The carbon XC MTB wheel Crossmax Ultimate enjoyed its first major success at Nové Město in May 2026: Katrin Embacher, of the KTM team, broke away as early as the second lap to win the XCO U23 World Cup event, her first victory at this level. The KTM and Mondraker teams have also secured several top-10 finishes in the Elite category since the start of the season.

Whether it’s a sprint for position, a technical singletrack section or the decisive attack before the finish line, you’ll ride faster on the Crossmax Ultimate without losing control.

Mosaic 0

More responsive on the accelerations. More stable on the descents.

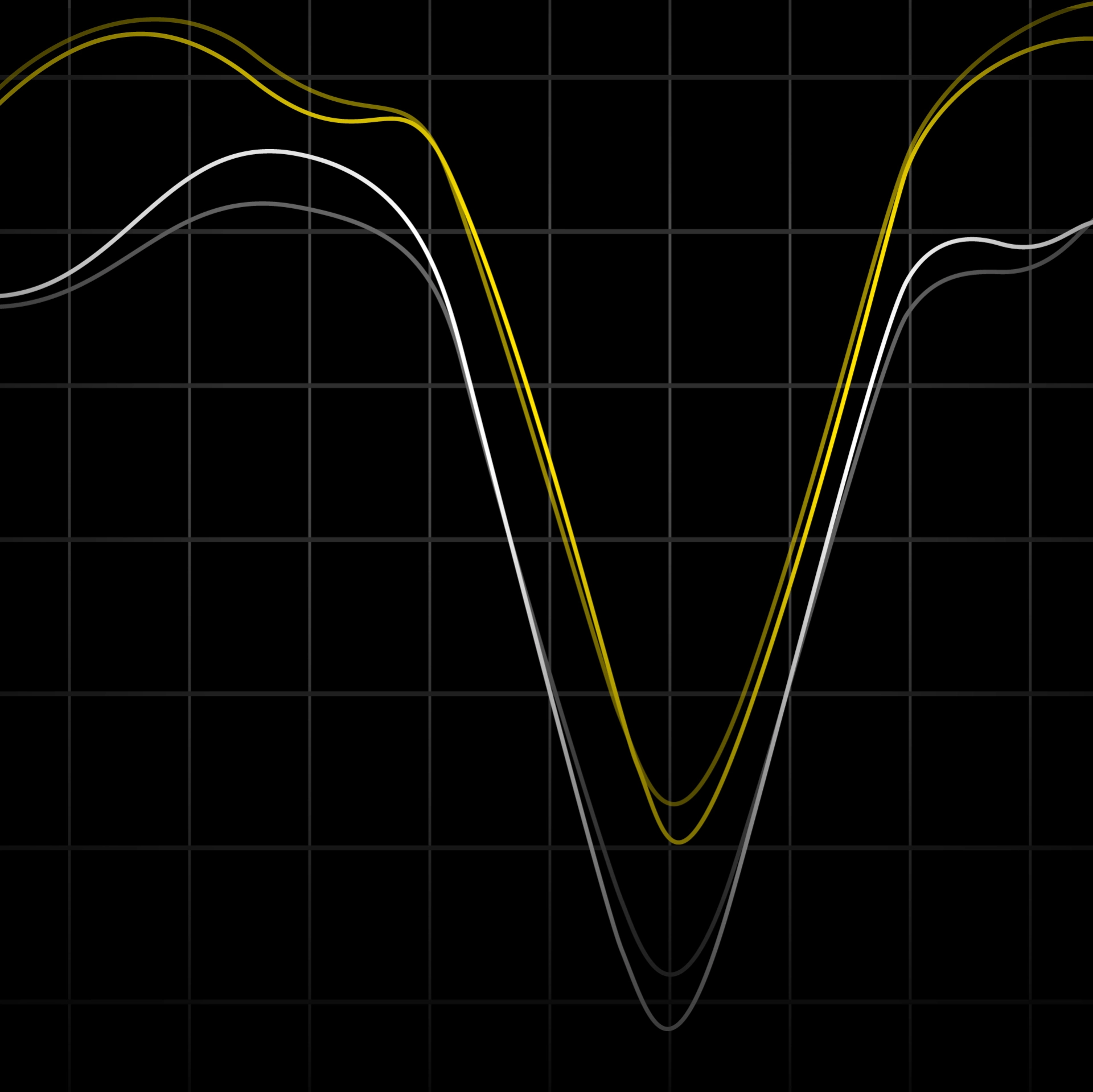

The load cycles of the Crossmax Ultimate’s spokes remain consistent regardless of their length, as shown in the graph: the carbon spokes and the rim’s fibres work as a single structure, giving the wheel its stiffness and responsiveness.

Out on the trail, you can feel the difference from the very first pedal strokes: the Crossmax Ultimate accelerates instantly and handles with precision.

Reliability in XC: 57 laboratory test protocols

The Crossmax Ultimate followed the Mavic method to the letter: test, improve, validate, then start again, until even the most demanding riders were satisfied.

Every component of the Crossmax Ultimate first proved its worth on the Mavic’s in-house test benches, capable of carrying out up to 57 different test protocols; a second series of checks then validated the assembled wheel. This dual validation ensures you have a reliable wheel, ride after ride.

To further enhance performance, Mavic’s engineers have completely redesigned the Crossmax Ultimate’s hub:

  • a 40-tooth ratchet freewheel, for instant engagement;
  • an optimised spring, which reduces friction when freewheeling;
  • Mavic Ceramic bearings, which minimise mechanical losses;
  • redesigned hub body, for efficiency and responsiveness;
  • ultra-lightweight hubs weighing 105g at the front and 180g at the rear (XD 6-hole);
  • Locked-In Spoke Heads, which maintain stable tension over time.

With this hub, the Crossmax Ultimate delivers consistent performance ride after ride.

Each pair of Crossmax Ultimate wheels is then hand-built and tested at the Mavic test laboratory in Chavanod, near Annecy: spoke tension, balancing and dynamic testing.

Mastery of the craft

In search of marginal gains

57
Extensive testing and double-checking for reliability that exceeds industry standards.

Crossmax Ultimate in the World Cup: KTM and Mondraker

The Crossmax Ultimate cross-country MTB wheel was developed in collaboration with riders from the Mondraker XC Factory Racing and KTM XC Factory Racing teams, who are now racing with it in the World Cup.

The KTM and Mondraker riders were involved even before development of the Crossmax Ultimate began, as the wheel was designed based on their requirements and feedback from the field. Over the course of nine months of field testing, they undertook a series of test campaigns in south-eastern France and Spain to compare and contrast several wheel designs.

Since the start of the 2026 World Cup season, the KTM and Mondraker teams have been racing exclusively on the Crossmax Ultimate.

Mondraker XC Factory
elite women’s & men’s teams

2 top-10 finishes in the 2026 World Cup

KTM factory
elite women’s and men’s teams

2 top-10 finishes and 1 U23 victory in the 2026 World Cup

Katrin Embacher
first World Cup victory, XCO U23, Nové Město, May 2026

Strength and stiffness of Crossmax carbon

Before being fitted to World Cup bikes, the Crossmax Ultimate carbon XC wheel underwent three series of in-house tests at Mavic: strength, stiffness and safety.

  • Strength and durability: the Crossmax Ultimate withstood extreme fatigue cycles and passed the most rigorous impact tests in Mavic’s protocols.
  • Stiffness and responsiveness: the Crossmax Ultimate’s measurements consistently rank among the best in Mavic’s testing protocols.
  • Safety: the Crossmax Ultimate passes Mavic’s most demanding impact tests and is ASTM Level 3 certified, so you can ride with confidence on rough terrain.

9 months
of field testing with professional riders.

Mavic technologies for XC carbon wheels

In the Mavic laboratory, the Crossmax Ultimate went through every stage: research, prototyping, testing, iterations, failures and improvements, right up to the production XC wheelset.

Mavic Adaptive Layup

The Adaptive Layup technology optimises each layer of carbon fibre in the rim to achieve the right balance between weight, lateral stiffness and vibration absorption. You gain in handling precision and responsiveness, with performance proven in competition.

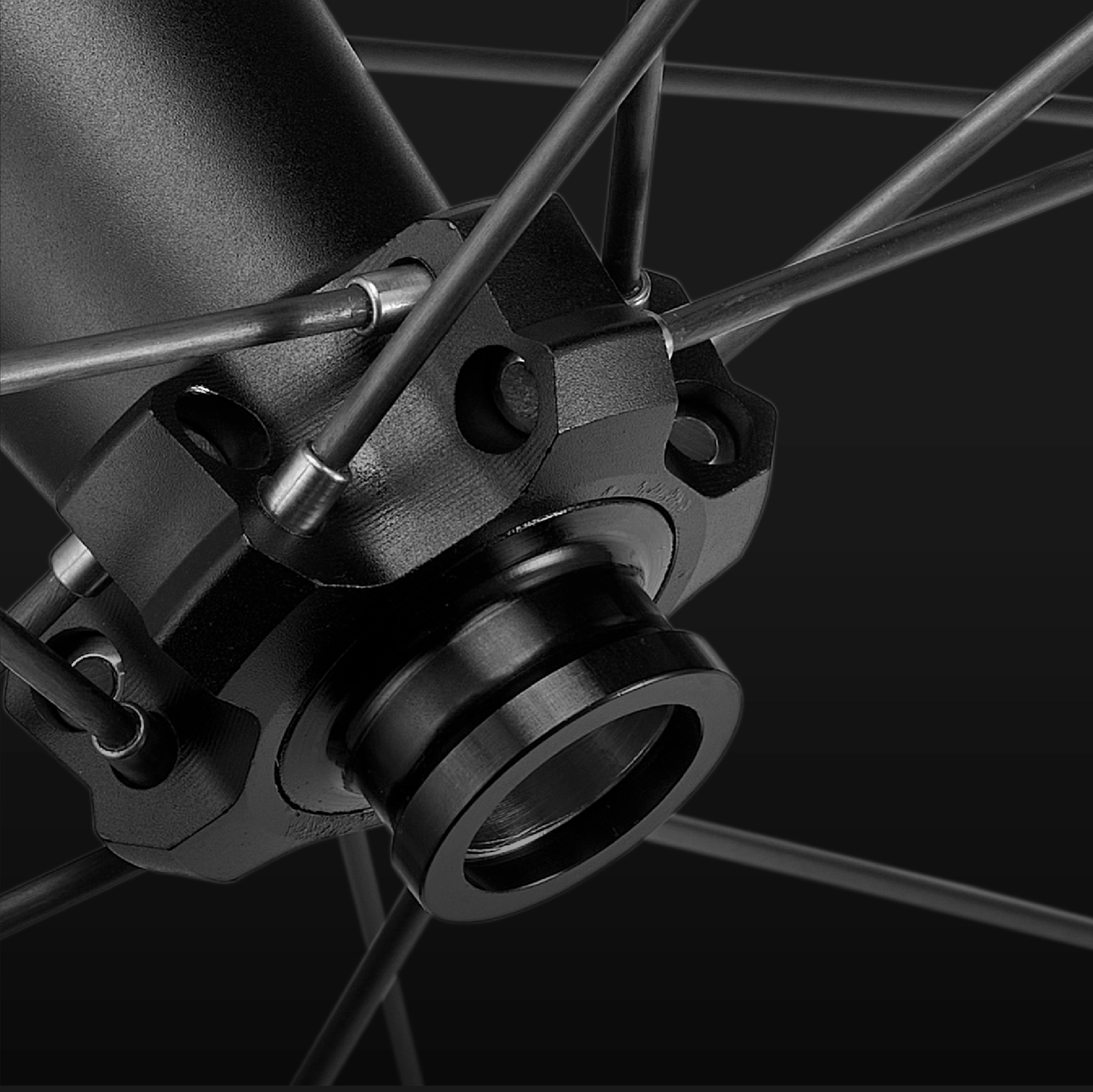

Carbon spokes

The Crossmax Ultimate’s carbon spokes, with titanium nuts, reduce rotating mass whilst remaining highly rigid. The 20-spoke pattern per wheel, laced in pairs, provides the flexibility needed to maintain control right up to the final lap, even on technical sections.

Mavic Ceramic bearings

The Mavic Ceramic bearings, fitted to the Crossmax Ultimate hubs, rotate with low friction and high precision, ensuring consistent performance ride after ride.

Assembled in the Mavic laboratory

Every Crossmax Ultimate is assembled in accordance with Mavic’s assembly protocol: spoke tension, balancing and dynamic testing.

Mosaic 0

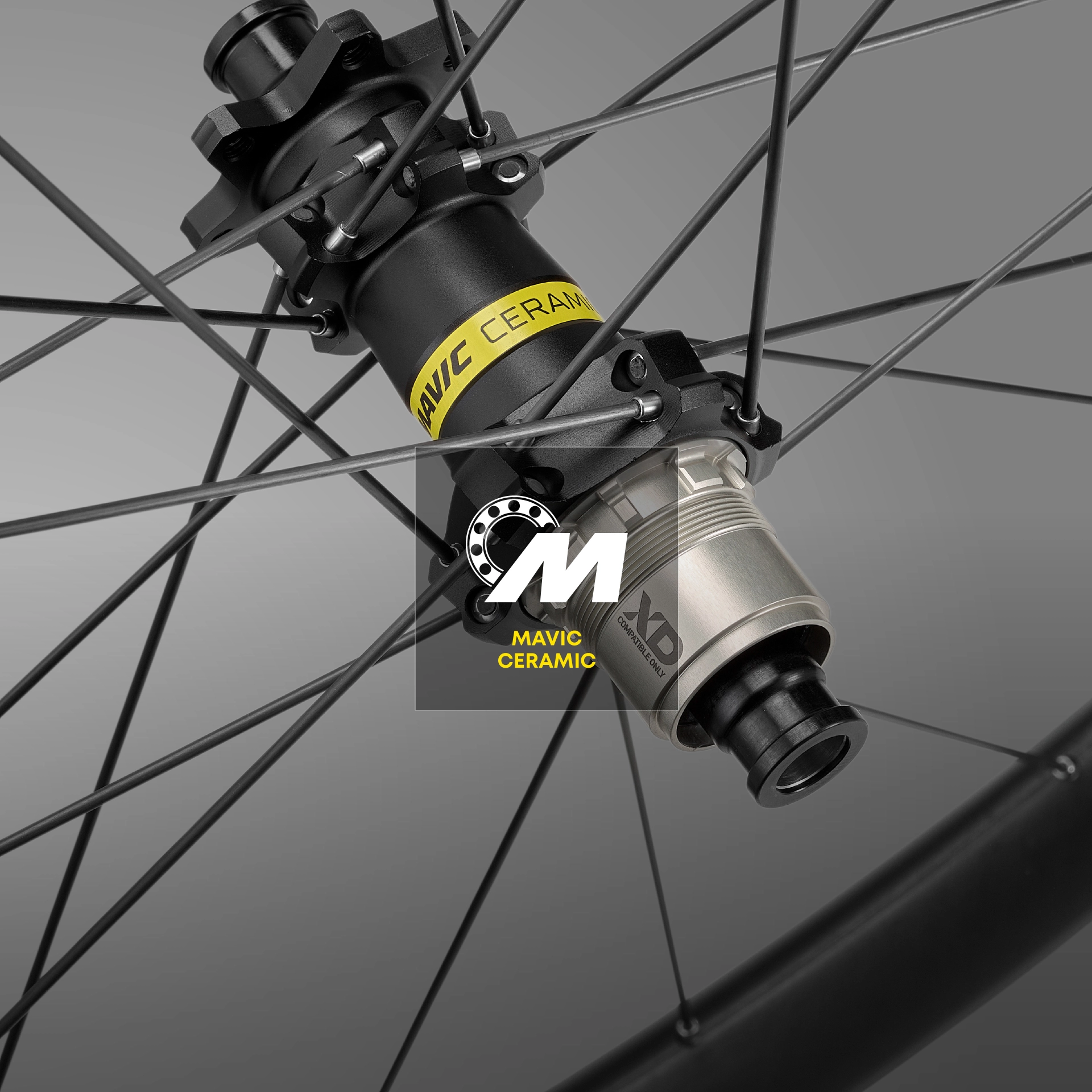

180 g
New ultra-lightweight rear hub fitted
with ceramic bearings to minimise friction.

Mosaic 1

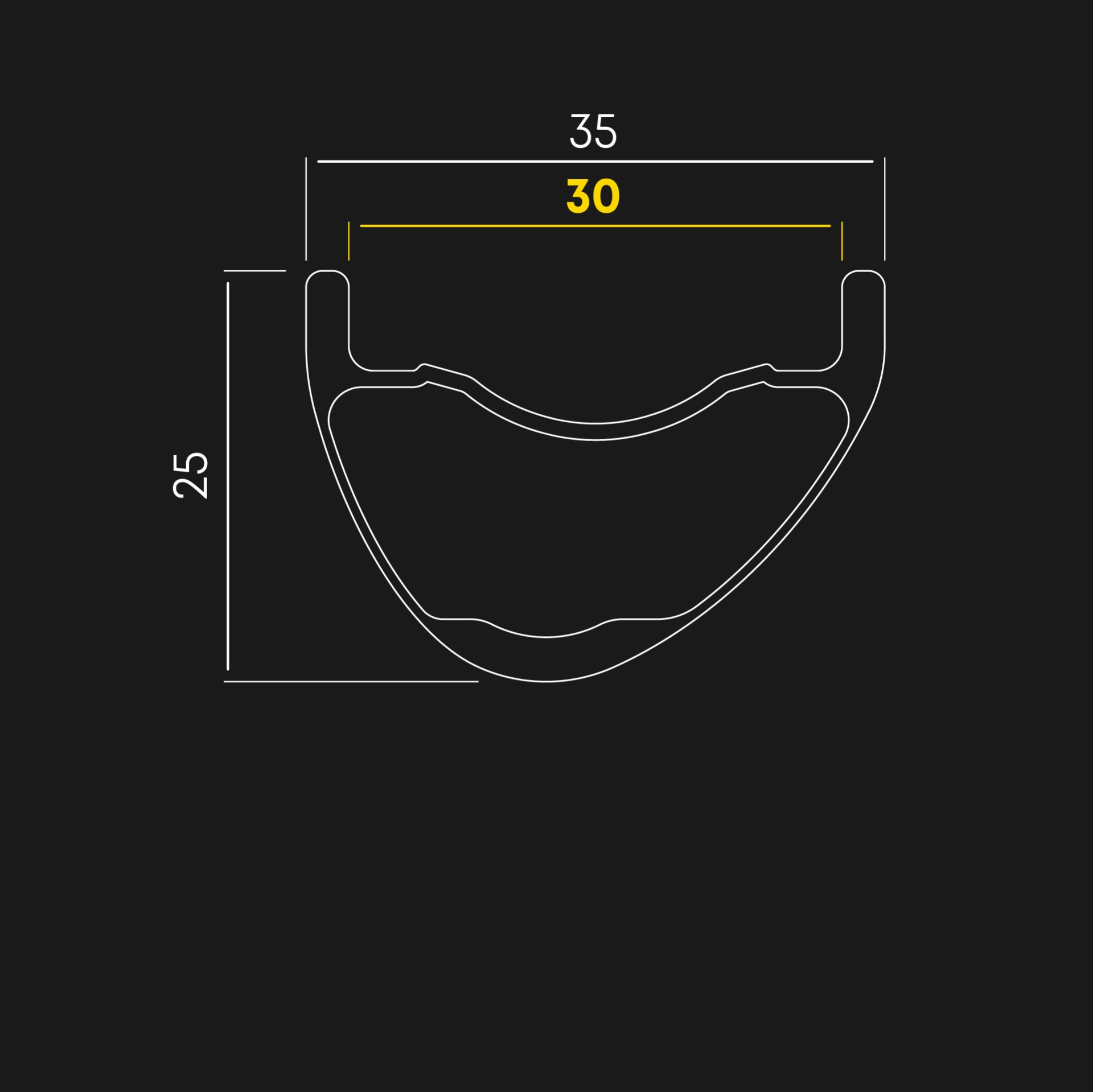

30 mm
internal width

Mosaic 2

Carbon spokes
lightweight construction thanks to
carbon spokes and titanium nuts (-100 g)

Mosaic 3

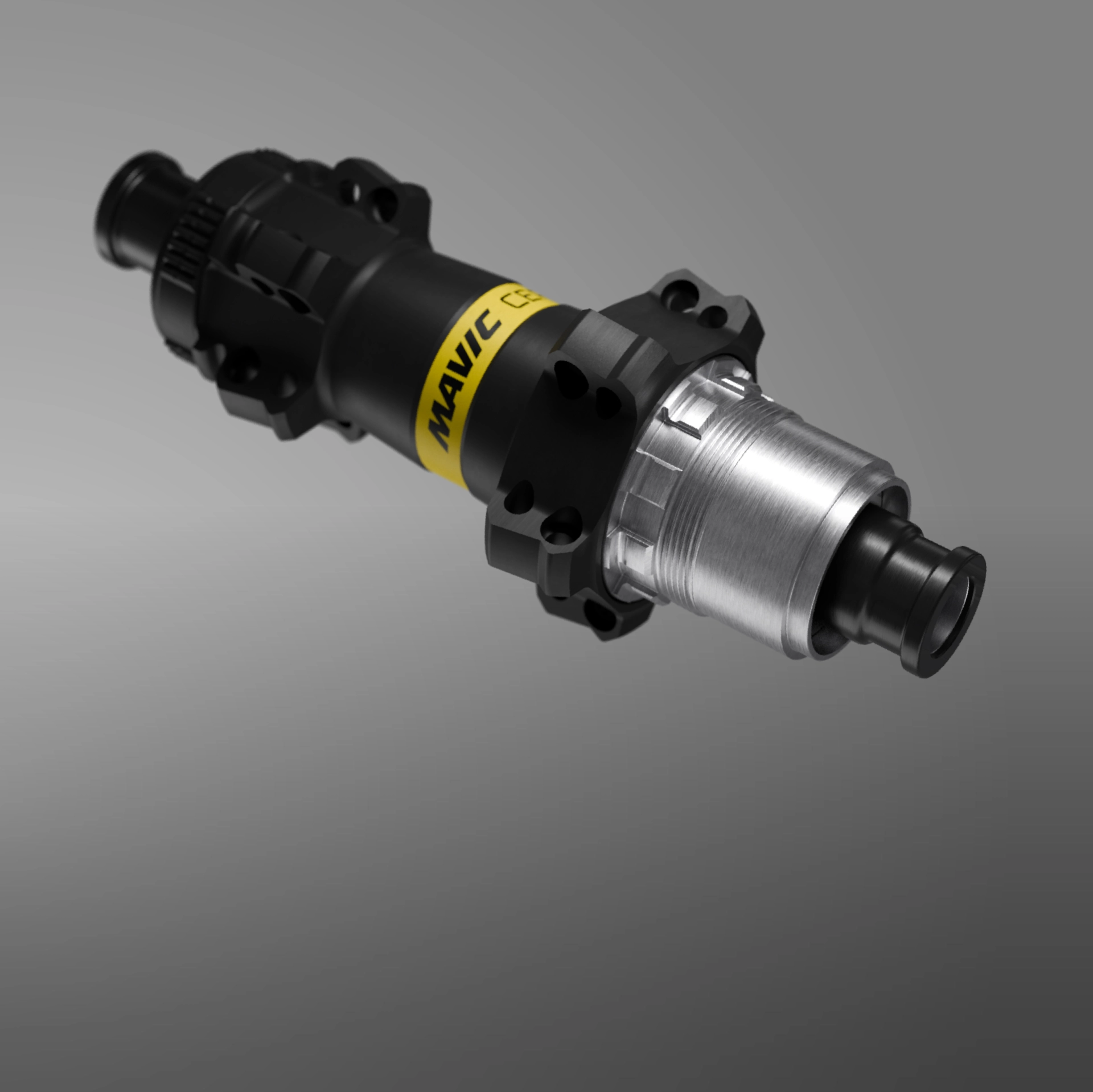

40 teeth
our high-density ratchets ensure
almost instantaneous engagement thanks to a stiffer MTB spring

Specs

Rims

Rim height

25 mm

Rim width

Internal: 30 mm / external: 36 mm

Construction type

Hookless tubeless-ready carbon

Materials

T700, T1000, 3K… Adaptive layup

Finish

UD carbon, raw

Decoration

Pad printing + model sticker

Weight

Front weight

500 g

Rear weight

580 g

Weight (pair)

1080 g

Hubs

Materials

Front and rear: ultralight aluminium body

Hub width

Front: 110 mm and rear: 148 mm

Axle type

Thru-axle: front 15 mm / rear 12 mm

Bearings

Mavic ceramic

Brake disc interface

Centre Lock & international (6-hole)

Compatibility

Centre Lock / MicroSpline
International / XD

Freewheel system

ID360 Ultralight 40 teeth
NEW ULH FREEWHEEL BODY

Spokes and nuts

Spokes

Carbon

Spoke configuration

20 per wheel, crossed in pairs

Nuts

Titanium

Tyre specifications

Tyre compatibility

Tubeless / tubeless-ready / inner tube

Recommended tyre width

2.3 / 2.4

ETRTO-compatible tyres

1.85 / 2.8 in

General

Assembly

Every pair of CROSSMAX ULTIMATE wheels is hand-assembled by our experts, then rigorously tested in our test laboratory in Chavanod, in the heart of the French Alps. This combination of artisanal expertise and industrial precision ensures that every wheel meets MAVIC’s highest standards for quality, performance and reliability.

ASTM

Level 3 classification

Accessories included

Tubeless valves
Tubeless rim tape fitted
Mavic wheel covers

Maximum load

135kg

Compatibility: 29-inch, Boost, disc, freehub

The Crossmax Ultimate is a 29-inch (ETRTO 622) carbon MTB wheel built to the Boost standard, with 15 × 110 mm thru-axles at the front and 12 × 148 mm at the rear, a Centre Lock or 6-bolt disc, and a Shimano MicroSpline or SRAM XD freehub body. The maximum load capacity is 135kg, including the bike.

Lifetime warranty and Mavic service

Mavic Care and lifetime warranty; technical manual; spare parts for 7 years; returns processing; customer service in 25 countries.

RRP €2,299
