COSMIC ULTIMATE 45 DISC 23mm

Main features

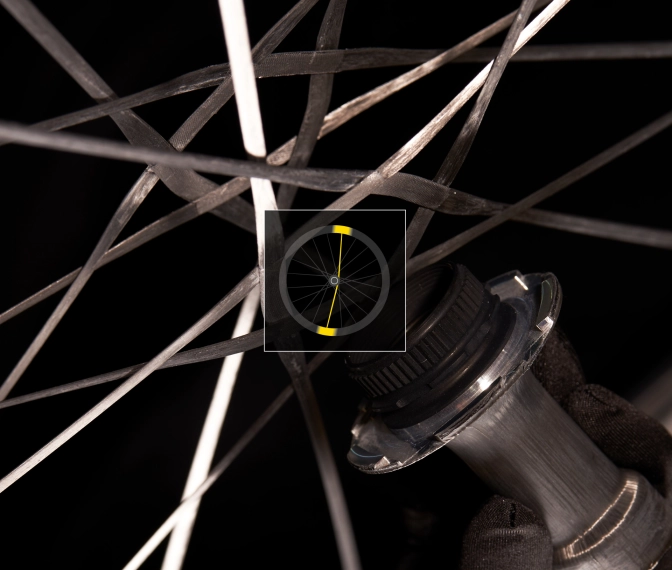

R2R : The ultimate performance spokes

A single full carbon spoke from one side of the rim to the other with the hub inbetween.
Perfect wheelsystem balance, lateral stiffness, and power transfer (either pedaling, braking or handling).
The shape also integrates aerodynamics and vertical compliance (comfort) in the equation.

Adaptive Layup : Strong where it matters, light everywhere else

Carbon is lighter than alloy, but weight always add up.
Using the right amount of fibers where the rim is less stressed to reduce rim weight with no compromise on reliability, this gives wheels that are livelier and more enjoyable while climbing. Up to 70g saved per rim.

Mavic Ceramic : Premium materials, premium performance

With its special properties, ceramic makes bearings spin a little faster and are more durable. Together with premium ceramic material, we use premium low-density grease paired with ultra slick seals.

Key technology

Efficiency RigidityAero Wide Rim Technology
Unmatched speed, control, and comfort combo.
LightnessAdaptive Layup Carbon technology
Strong where it matters, light everywhere else
Efficiency RigidityInstant Drive 360 freewheel technology
The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
Efficiency RigidityR2R carbon spoke technology
The ultimate performance spokes
Efficiency RigidityUST tubeless technology
Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

Specifications

  • Weight Pair : 1260 g
  • Weight Front : 575 g
  • Weight Rear : 685 g
  • Material: 100% carbon fiber with UD external layer
  • Height: 45 mm
  • Internal width: 23 mm
  • Drilling: co-molded Fore drilled inserts (front/rear 20 holes)
  • Braking: disc
  • ETRTO size: 622x23TC
  • WARNING : lateral runout garanteed under 0.5mm, not below.
  • Tire: UST Tubeless Ready
  • Freewheel technology: Instant Drive 360
  • Freewheel: Shimano HG road light / Sram XD road
  • Bearings : Mavic Ceramic
  • Freewheel body: convertible CAMPAGNOLO ED (kit 30871201 sold separately)
  • Freewheel body: convertible SHIMANO HG light road (kit V3850101 sold separately)
  • Freewheel body: convertible SHIMANO MS (kit V3990101 sold separately)
  • Freewheel body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
  • Freewheel body: convertible SRAM XD MTB (kit V3740101 sold separately)
  • Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
  • Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately)
  • User guide
  • Wheel cover
  • UST valve not mounted on wheel
  • 2 Multifonction adjustment wrench with the rear wheel
  • Minimum tyre size: width 28mm - pressure max. 5.5Bar/80PSI
  • Maximum tyre size: width 64mm - pressure max. 3.5Bar/51PSI
  • ASTM category 1 : road only
  • Maximum weight supported by the wheels: must not exceed 120 kg (bike weight included)
