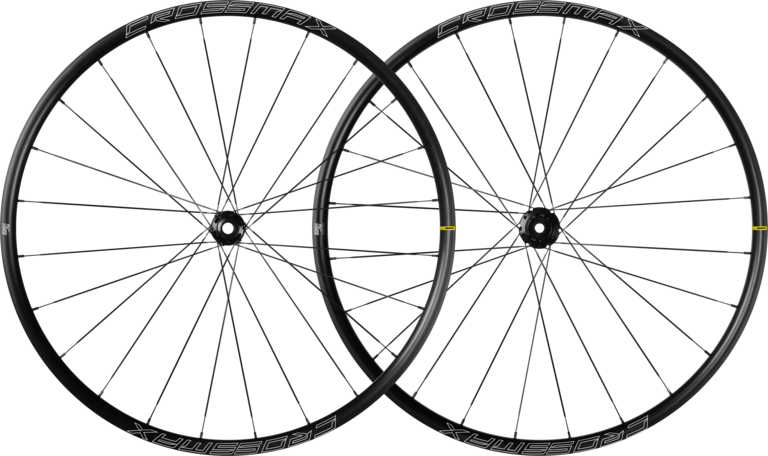

CROSSMAX 29
The name Crossmax has a long history in the world of XC riding and racing and this new wheelset lives up to its name with many of the same features and technologies as pro-level XC race wheels, but at a far more attainable price. One of the key factors is our UST technology, which allows for easy setup of tubeless ready tires and gives you all the associated benefits including better traction and control, a smoother ride quality and a reduced risk of punctures. The rim is welded for added reliability and features a 25mm internal width with a hookless profile.

The Infinity lighter hub design optimizes lateral stiffness and spokes tension. Our Instant Drive 360 freewheel with a double ratchet system provides fast engagement and top-level reliability.
The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies.
The Crossmax is available in 29'', with 6-bolt or center lock brake rotors and Boost axles (15x110 front and 12x148 rear) or standard axles (15x100 front and 12x142 rear). It is also available in 27.5'' with 6-bolt or center lock brake rotors and Boost axles (15x110 front and 12x148 rear), and 6-bolt rotor with standard axles (15x100 front and 12x142 rear).
The wheel is delivered with valves, replacement spokes and accessories.

Main features

Light and durable

Welded rim construction for:
a light and strong rim profile and a a perfectly sealed rim

Dynamic and agile

24 double butted spokes
Infinity hub platform
ID360 double ratchet freewheel​ system

Tubeless ready technology

A tubeless rim profile and tubeless tape make it easy to ride tubeless tires for more comfort and control

Specifications

  • Weight Pair : 1770 g
  • Weight Front : 820 g
  • Weight Rear : 950 g
  • Material: Maxtal
  • Height: 21 mm
  • Joint: SUP welding technology
  • Internal width: 25 mm
  • Drilling: traditional (front/rear 24 holes)
  • Braking: disc
  • Profile: asymmetrical and hookless
  • ETRTO size: 622x25TSS
  • Tire: UST Tubeless Ready - Use with Mavic Tubeless Tape
  • Material: steel
  • Shape: straight, extra-flat, constricted, antirot (front and rear)
  • Nipples: steel, ABS, black
  • Lacing: crossed 2 (front and rear)
  • Body material: aluminium
  • Body design: INFINITY
  • Disc standard : 6 Bolts or Center Lock®
  • Axle material: aluminum
  • Axle size: front 15x110 / rear 12x148
  • Axle size: front 15x100 / rear 12X142 - Convertible to quick release with included adapters
  • Freewheel technology: Instant Drive 360
  • Freewheel: Shimano HG MTB / Shimano MS / Sram XD MTB
  • Bearing technology: QRM automatic setting - sealed cartridge
  • Freewheel body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
  • Front axle adapters: 15x100 convertible to 9x100 (kit 99694101 sold separetly)
  • Front axle adapters: 15x110 convertible to 9x110 (kits 99694101 + V2372501 sold separetly)
  • Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separetly)
  • Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separetly)
  • Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separetly)
  • Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separetly)
  • User guide
  • Rim tape mounted on wheel
  • UST valve not mounted on wheel
  • 2 replacement spokes with each wheel
  • Multifonction adjustment wrench with the rear wheel
  • Minimum tyre size: width 30mm - pressure max. 4.05Bar/59PSI
  • Maximum tyre size: width 64mm - pressure max. 2.45Bar/36PSI
  • ASTM category 3 : cross country
  • Maximum weight supported by the wheels: must not exceed 150 Kg (bike weight included)

Key technology

LightnessMaxtal aluminum alloy
Light and strong. Exclusive to Mavic, this specific aluminum alloy offers a higher strength to weight ratio than conventional 6106 alloy.
Efficiency RigidityInstant Drive 360 freewheel technology
The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
Efficiency RigidityUST tubeless technology
Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.
Safety ReliabilitySUP welding technology
Soudé Usiné Process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.
Safety ReliabilityInfinity hub design
Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.
Safety ReliabilityQRM Auto bearing preload technology
Qualité de Roulements Mavic Auto. Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
