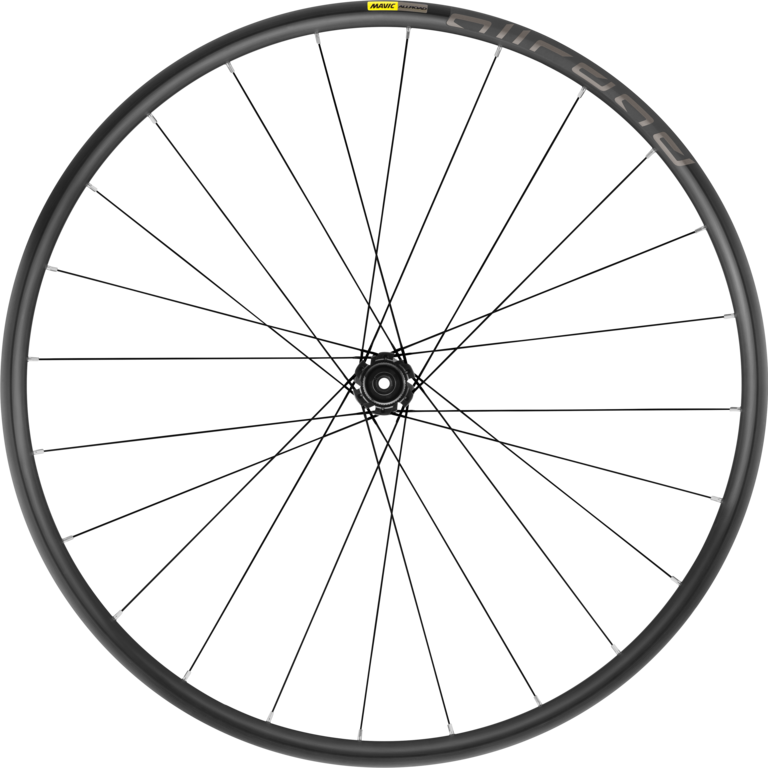

With a wide 23mm rim profile that's optimized for high-volume tires, this UST Road Tubeless wheel system is built for adventure.

Perfect for riding on rough roads, gravel or dirt, it gives you the smooth-riding performance of tubeless tires and makes it easy to set them up without any hassles. Low rolling resistance and a reduced risk of punctures add up to a better overall riding experience, especially on rugged terrain.

The wheels are engineered for the unique demands of disc brakes, built up with 24 straight-pull spokes, which are stronger than J-bend spokes. So wherever the road goes, and however rough it gets, you're ready to keep things rolling.

Main features

Purpose-built for riding rough roads, gravel or dirt.

22mm wide rim takes tire up to 62mm.
UST Road Tubeless technology improves comfort and rolling resistance, and reduces the risk of punctures.
Compatible with all standard retention systems.

Proven performance and reliability at an attainable cost.

High-quality QRM cartridge bearings.
Disc-brake-specific, sleeved-style rim technology.
Straight-pull round spokes, which are stronger than J-bend spokes.

Rolling efficiency and nimble ride quality

Sleeve joint rim minimizes weight.
Consistent and stable spoke lacing.
Low-friction hubs.

Specifications

  • Weight Pair : 1890 g
  • Weight Front : 870 g
  • Weight Rear : 1020 g
  • Material: S6000 Aluminum
  • Height: 22 mm
  • Joint: sleeved
  • Internal width: 23 mm
  • Drilling: traditional (front/rear 24 holes)
  • Braking: disc
  • ETRTO size: 622x23TC
  • Tire: UST Tubeless Ready - Use with Mavic Tubeless Tape
  • Material: steel
  • Shape: straight, round (front and rear)
  • Nipples: steel, ABS, incolor
  • Lacing: crossed 2 (front and rear)
  • Body material: aluminium
  • Disc standard : 6 Bolts or Center Lock®
  • Axle material: aluminum
  • Axle size: front 12x100 / rear 12x142 - Convertible to quick release with included adapters
  • Freewheel technology: Instant Drive 360
  • Freewheel: Shimano HG road
  • Bearing technology: QRM automatic setting - sealed cartridge
  • Freewheel body: convertible SRAM XD road (kit V2580101 sold separately)
  • Freewheel body: convertible SHIMANO HG light road (kit V3850101 sold separately)
  • Freewheel body: convertible SHIMANO MS (kit V3990101 sold separately)
  • Freewheel body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
  • Freewheel body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
  • Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separetly)
  • Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separetly)
  • Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separetly)
  • User guide
  • Rim tape mounted on wheel
  • UST valve not mounted on wheel
  • Front axle adapter: 12x100 convertible to 9x100
  • Rear axle adapter: 12x142 convertible to 9x135
  • ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
  • For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
  • Maximum tyre pressure: 5.5bar/80PSI with a 28mm tyre - 3.25bar/47PSI with a 64mm tyre
  • Recommended tire sizes: 28 to 64 mm (1.1 to 2.5)
  • Max. Pressure: see indication on wheel and tire. If they differ, use the lowest of the 2

Key technology

Efficiency RigidityUST tubeless technology
Traction and control Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.
Efficiency RigidityInstant Drive 360 freewheel technology
The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
Safety ReliabilityQRM Auto bearing preload technology
Qualité de Roulements Mavic Auto Our latest innovation. Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

User guides and documents

General User GuideDownload PDF
FreewheelDownload PDF
AdaptateurDownload PDF
AdaptateurDownload PDF
AdaptateurDownload PDF
Rim tape User GuideDownload PDF
