Maxtal aluminum alloy
Light and strong
Exclusive to Mavic, this specific aluminum alloy offers a higher strength to weight ratio than conventional 6106 alloy

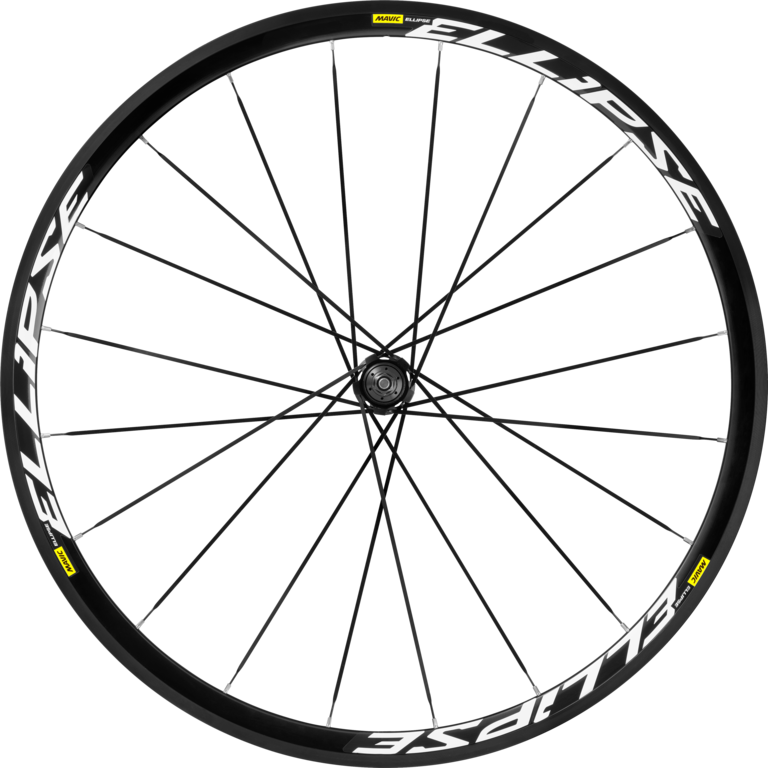

Track
ELLIPSE
Reliable aero performance for everyday track training and racing
Read full description
Pair : 1895 grams
Front : 905 grams
Rear : 990 grams
Key benefits
Train and race with a reliable aero advantage.
30mm deep aluminum welded rim offers unbeatable aerodynamics.
Low spoke count (20 front and rear).
Ultra-bladed spokes.
Low spoke count (20 front and rear).
Ultra-bladed spokes.
Quick acceleration, maximum power transmission and low rolling resistance.
Front and rear dishes optimized for incredible stiffness.
QRM+ cartridge bearings ensure maximum rolling efficiency.
QRM+ cartridge bearings ensure maximum rolling efficiency.
Change tires and swap gears quickly and easily.
Rear “flip-flop” hub lets you adjust your gearing depending on the track.
Clincher rims for convenient tire changes.
Clincher rims for convenient tire changes.
Built on 30mm deep aluminum rims that are welded for superior strength, this track-racing wheelset delivers an aerodynamic advantage and proven reliability.
Versatile enough for everyday training and racing, the rims are designed for clincher tires. Wide-dish hubs produce maximum stiffness, and solid cartridge bearings laced with ultra-bladed straight-pull spokes form a rigid connection between the rim and hub.
The rear hub has a double-sided thread so two cogs can be used on the same wheel, making gear changes fast and easy.
Versatile enough for everyday training and racing, the rims are designed for clincher tires. Wide-dish hubs produce maximum stiffness, and solid cartridge bearings laced with ultra-bladed straight-pull spokes form a rigid connection between the rim and hub.
The rear hub has a double-sided thread so two cogs can be used on the same wheel, making gear changes fast and easy.
Specifications
Rims
- Material: S6000 Aluminum
- Height: 30 mm
- Joint: SUP welding technology
- Drilling: traditional
- Valve hole diameter: 65 mm
- Tire: clincher
- Internal width: 15mm
- ETRTO size: 622x15C
Spokes
- Material: steel
- Shape: straight pull, flat
- Nipples: brass, ABS
- Nipples: steel, ABS
- Count: 20 front and rear
- Lacing: front radial, rear crossed 2
Hubs
- Front and rear bodies: aluminum
- Axle material: steel
- Fixed cog
- QRM+ bearing preload technology
Versions
- Color: Black only
Compatibility
- Freewheel: fixed cog only, flip-flop hub (one cog possible on each hub side) Cog thread: 1,37x24TPI Lock ring thread: left thread M33x1
- Front axle: for fixing nuts only (included), M9x1 thread
- Rear axle: for fixing nuts only (included), M9x1 thread
Delivered with
- Fixing nuts
- Rim tape
- Multifonction adjustment wrench (delivered with rear wheel)
- Cog lock nut
- User guide
Intended use
- For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
- Maximum tyre pressure: 84bar/121PSI with a 23mm tyre - 785bar/114PSI with a 32mm tyre
- Recommended tire sizes: 18 to 25 mm
- Max Pressure: see indication on wheel and tire If they differ, use the lowest of the 2
- Minimum cog width : 75mm
Information on specified weight
- The weight of the wheels is announced at +/-5%, without lock-nut, nor rim tape (for the clincher wheels)
Key technologies

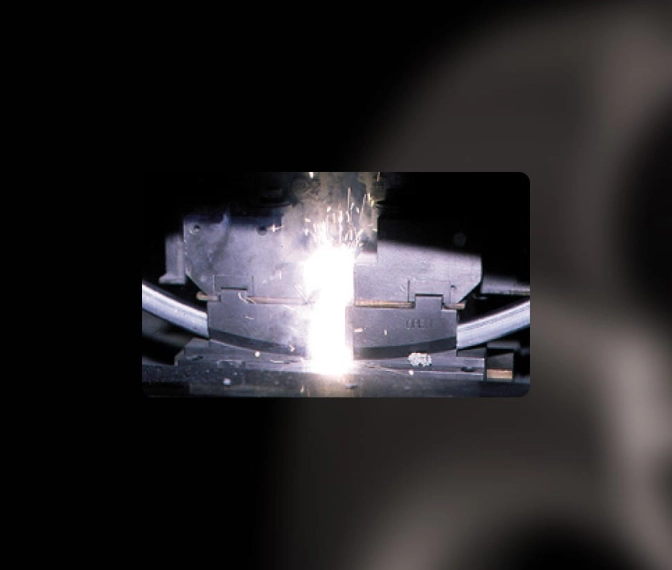

SUP welding technology
Stronger and smoother joint
Soudé Usiné Process After bending, the rim joint is arc welded The welded seam is then milled for a smooth finish
